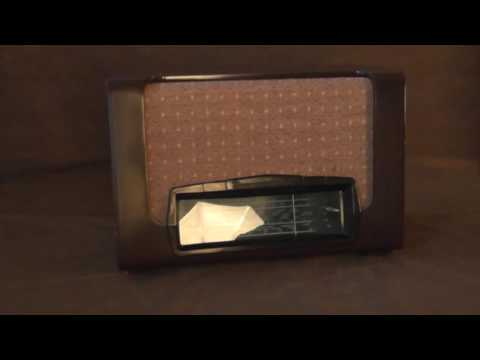

The Dnepropetrovsk radio receiver has been produced by the Dnepropetrovsk radio plant since 1954.
The receiver is a class 2 six-lamp network desktop superheterodyne.
It has the LW, MW, and two HF subbands: HF1 3.95 ... 9.85 MHz, HF2 8.5 ... 12.1 MHz.
Sensitivity 150 μV.
Adjacent channel selectivity is about 26 dB.
40 dB mirror selectivity in the LW, CB, and 12 dB ranges in the HF subbands.
Band of reproduced frequencies 100 ... 4000 Hz.
The speakers used two loudspeakers 1GD-1,5 with spaced resonance.
The rated output power is 1.5 watts.
Power consumption 65 watts.
There are sockets for an adapter and an additional speaker.
The receiver case is wooden, veneered for valuable species.
The dimensions of the receiver are 515x345x265 mm.
Weight 12.2 kg.
