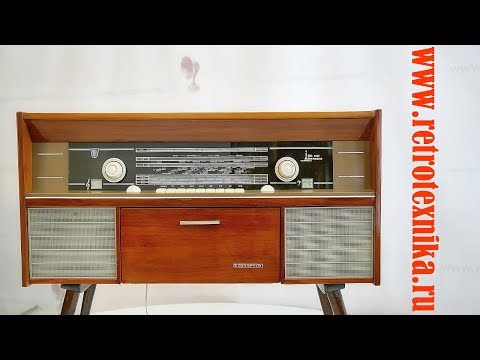

The network tube radiola "Belarus R-101-L" has been produced by the Minsk Radio Plant since 1966.
,86e6f450b8cc469628ba70bf2947b049
The floor lamp radio is an 11-tube superheterodyne radio receiver of the 1st class powered from the electric network, combined with a universal electric player.
,86e6f450b8cc469628ba70bf2947b049
The radio speaker system consists of four 2GD-19 loudspeakers.
,86e6f450b8cc469628ba70bf2947b049
There is an IF bandwidth control and separate tone control for HF and LF.
,86e6f450b8cc469628ba70bf2947b049
The radio tubes used radio tubes: 6NZP, 6K4P (3), 6I1P, 6N2P (3), 6P14P (2), 6E1P.
,86e6f450b8cc469628ba70bf2947b049
Ranges: DV, SV, VHF standard.
,86e6f450b8cc469628ba70bf2947b049
KV-3 75.9 ... 39.5 m, KB-2 32.3 ... 30.6 m, KB-1 25.85 ... 24.8 m. Sensitivity on the ranges DV, SV, KB
,86e6f450b8cc469628ba70bf2947b049
100 μV, VHF 10 μV.
,86e6f450b8cc469628ba70bf2947b049
Sensitivity from the jacks of the pickup 0.25 V. Selectivity on the adjacent channel in the ranges DV, SV 60 dB, VHF 34 dB.
,86e6f450b8cc469628ba70bf2947b049
Maximum output power 6 W.
,86e6f450b8cc469628ba70bf2947b049
Power consumption 100 watts.
,86e6f450b8cc469628ba70bf2947b049
The band of reproducible sound frequencies in the VHF range of 80 ... 12000 Hz.
,86e6f450b8cc469628ba70bf2947b049
The dimensions of the radio are 810 x 380 x 270 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight 28 kg.
