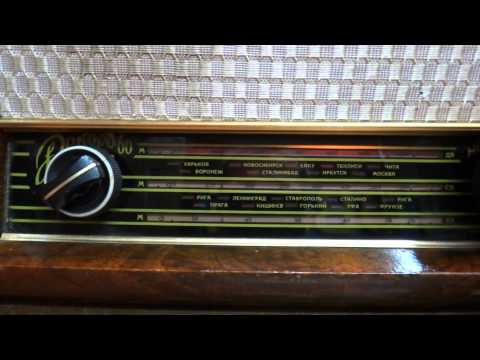

Radio network lamp "Record-60" from the beginning of 1960 produced Berd Radio Plant. The third-class network tube radio as the Record-60 is assembled on 4 radio tubes 6Ð10С (6Ð7), 6КЗ, 6Г2, 6П6С (6Ф6С). Wave bands: LW 150 ... 415 KHz (2000 ... 723 m), CB 520 ... 1600 KHz (577 ... 188 m), KV 12.1 ... 3.95 MHz (24.8 ... 75.9 m). IF 465 kHz. The sensitivity of the model on DV, SV - 300 µV, KV - 500 µV. The adjacent channel selectivity with 10 kHz detuning is at least 20 dB. Selectivity on the mirror channel in the Far East, SV - 30 dB, KV - 12 dB. Rated output power 0.5 watts. The band of reproduced sound frequencies is 150 ... 3500 Hz. Power consumption 60 watts. Cascades radios are similar to the Record-52 model. Kenotron replaced by a selenium column type ABC-80x260. In the radio unit, the universal electric player EPU-5M was used. 1GD-5 loudspeaker. The dimensions of the radiogram are 440x319x280 mm, its mass is 11.6 kg.
