The television receiver for b / w images "Horizont-106D" has been produced by the Minsk Radio Plant since 1973.
,86e6f450b8cc469628ba70bf2947b049
'' Horizon-106D '' (ULPT-67-I-7) TV of the 1st class, designed to receive b / w television programs.
,86e6f450b8cc469628ba70bf2947b049
The device is made with a sensor device for switching programs and an autonomous speaker and works in any of the channels of the MV and UHF range.
,86e6f450b8cc469628ba70bf2947b049
The sensor device switches the device to one of 6 pre-configured channels by touching a finger on the contact in the form of a number.
,86e6f450b8cc469628ba70bf2947b049
The speaker with a built-in amplifier is made as a TV stand and can be connected to a tape recorder or radio receiver to improve their sound quality.
,86e6f450b8cc469628ba70bf2947b049
The sensitivity of TV in the range of MV 50, UHF 75 μV.
,86e6f450b8cc469628ba70bf2947b049
Image size 535x400 mm.
,86e6f450b8cc469628ba70bf2947b049
Clarity horizontal 500, vertical 550 lines.
,86e6f450b8cc469628ba70bf2947b049
The band of sound frequencies reproduced by the AU is 63 ... 12500 Hz.
,86e6f450b8cc469628ba70bf2947b049
Rated output power 6 W.
,86e6f450b8cc469628ba70bf2947b049
The power consumption of the TV is 190 W, the AC is 30 W.
,86e6f450b8cc469628ba70bf2947b049
The dimensions of the TV are 720x590x490 mm, the speaker is 720x192x350 mm.
,86e6f450b8cc469628ba70bf2947b049
TV weight 46 kg.
,86e6f450b8cc469628ba70bf2947b049
ÐС 13 kg.
,86e6f450b8cc469628ba70bf2947b049
Since 1975, the plant has been producing the Horizont-107 television set similar in design and design to that described.
,86e6f450b8cc469628ba70bf2947b049
Back in 1974, the plant produced a batch of Gorizont-108 TV sets in design and design similar to those described, but with a full-function IR remote control.
,86e6f450b8cc469628ba70bf2947b049

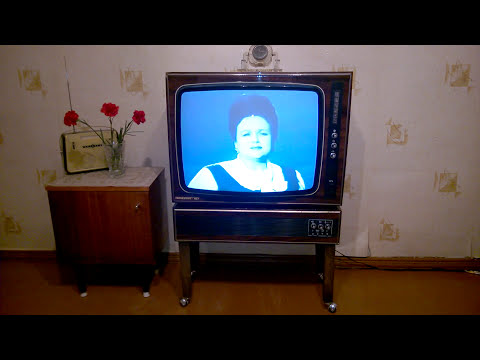

No data could be found on this TV, only one PHOTO.
