Since 1973, the portable radios "Meridian-202" and "Meridian-203" have been produced by the Kiev plant "Radiopribor".
,86e6f450b8cc469628ba70bf2947b049

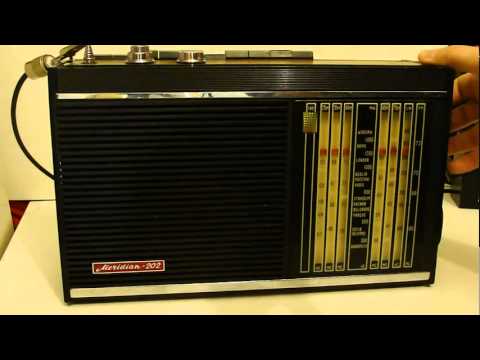

The portable transistor receiver of the 2nd class "Meridian-202" is developed on the basis of the "Meridian-201" model.
,86e6f450b8cc469628ba70bf2947b049
It is designed to receive in the ranges: DV, SV, KV-1 (24.8 ... 25.6 m), KB-2 (30.7 ... 31.6 m), KB-3 (41.0
,86e6f450b8cc469628ba70bf2947b049
... 42.3 m), KB-4 (48.4 ... 50.4 m), KB-5 (50.4..76.0 m) and VHF-CHM (4.05 ...
,86e6f450b8cc469628ba70bf2947b049
4.5 m) waves.
,86e6f450b8cc469628ba70bf2947b049
In the VHF range there is an AFC system.
,86e6f450b8cc469628ba70bf2947b049
The model uses a push-button range switch, separate tone controls for lower and higher sound frequencies, there is an electronic-light two-color indicator of tuning to the station.
,86e6f450b8cc469628ba70bf2947b049
The acoustic system of the model consists of a loudspeaker 1GD-37.
,86e6f450b8cc469628ba70bf2947b049
Rated output power ULF 0.4 W.
,86e6f450b8cc469628ba70bf2947b049
The receiver is powered by 6 elements 373, with a voltage of 9 V. The dimensions of the receiver are 215x332x96 mm, weight is 3.5 kg.
,86e6f450b8cc469628ba70bf2947b049
Together with the Meridian-202 model, but in a much smaller quantity (~ 3 thousand units), the plant produced the Meridian-203 radio receiver, which differed only in a different external design and a tuning scale on top (first photo below).
