Vega-402 1972
Sorry, this page is not translated yet. Automatic translation used.

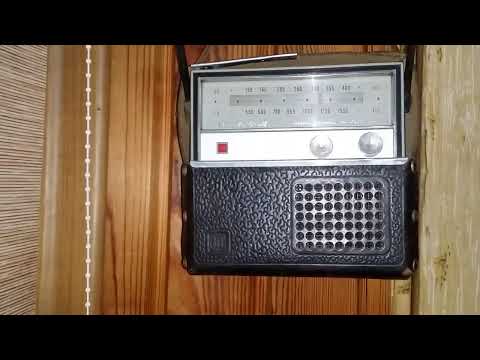

Portable transistor radio "Vega-402" from 1972 produced the Berdsk radio plant. A fourth-class radio receiver, the Vega-402, operates in the Far East and CB ranges. Compared with the radio "Vega", the new radio receiver has a modified detector circuit and input circuit in the LW range. The rest of the electrical circuit repeats its predecessor. The new radio has a backlight scale, and the vernier device is made a separate node. The radio is powered by two 3336L batteries. The sensitivity of the receiver "Vega-402" in the range of DV 2.5 mV / m SV 1.5 mV / m. The selectivity is 26 and 20 dB, respectively. Rated output power 150 mW. The range of reproduced sound frequencies is 315 ... 3550 Hz. In the absence of 3336L batteries, it is possible to be powered by a Krone battery or a 7D-0.1 battery, for which there is a connector on the power supply board. The receiver dimensions are 157x160x64 mm, its weight is 980 g. Includes leather case. The radio was exported to a number of socialist countries.
Documentation:
Video:
Information from collection of Valery Khartchenko
