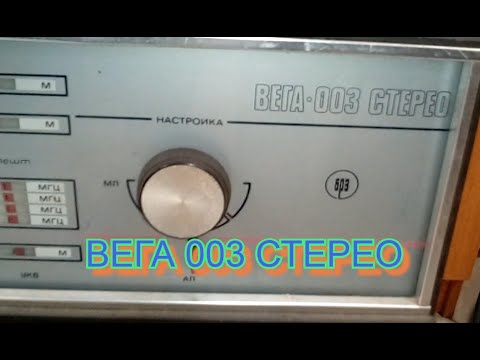

Radiola "Vega-003-stereo" has been produced by the Berdsk Radio Plant since the middle of 1974.
,86e6f450b8cc469628ba70bf2947b049
The high-class stereophonic radio "Vega-001-stereo" due to the EPU type II-EPU-62S of the Riga EMZ used in the "Vega EPU-NCH" ("Vega-103") electrophone could not be a top-class radio, therefore, through
,86e6f450b8cc469628ba70bf2947b049
For 5 months, the radio was replaced with the Vega-003-stereo model, where the Vega-002-stereo electrophone with the Unitra high-class EPU was used as an EPU and amplifier, it is described separately.
,86e6f450b8cc469628ba70bf2947b049
In the tuner, the inscriptions on the scale and rear wall have been replaced.
,86e6f450b8cc469628ba70bf2947b049
Radiola `` Vega-003-stereo '' is designed for reception in the DV, SV, KB-1 ... KV-5 and FM bands in the VHF range and for receiving stereo transmissions in the VHF range and playing mono and stereo phonograph records of all formats
,86e6f450b8cc469628ba70bf2947b049
...
,86e6f450b8cc469628ba70bf2947b049
Sensitivity with an internal magnetic antenna in the ranges DV 1.5 mV / m, SV 1 mV / m, and when working with an external antenna, sensitivity in the ranges: DV, SV and KB - 50 μV, VHF-FM - 5 μV.
,86e6f450b8cc469628ba70bf2947b049
The HF path of the radio is vacuum tube, completely repeating the Vega-001-stereo model.
,86e6f450b8cc469628ba70bf2947b049
The rated output power of the ULF is 2x6 W.
,86e6f450b8cc469628ba70bf2947b049
The band of reproducible frequencies of the AM path is 40 ... 7000 Hz, FM - 40 ... 16000 Hz.
,86e6f450b8cc469628ba70bf2947b049
The electrophone has a 4- or 3-speed EPU with adjustment of the rotational speed of the disk by a stroboscope.
,86e6f450b8cc469628ba70bf2947b049
It uses a tonearm with a microlift, a counterweight for adjusting the balance and reduced weight with an electromagnetic head.
,86e6f450b8cc469628ba70bf2947b049
The frequency range when listening to a record is 40 ... 18000 Hz.
,86e6f450b8cc469628ba70bf2947b049
ÐС consists of 2 ÐС "10MAC-1M".
,86e6f450b8cc469628ba70bf2947b049
The dimensions of the radio receiver are 650x215x340 mm.
,86e6f450b8cc469628ba70bf2947b049
EPU with an amplifier (electrophone) 485x341x115 mm.
