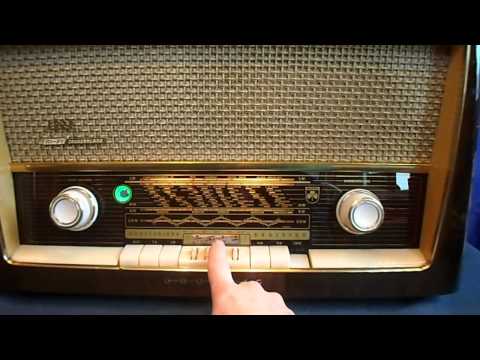

The network tube radio "Grundig-3028" has been produced since 1956 in several countries by the firm "Grundig", West Germany.
,86e6f450b8cc469628ba70bf2947b049
The radio was produced with the variants "Musikgert" - Music by Hert, "Zauberklang" - Magic sound and others, slightly different in design.
,86e6f450b8cc469628ba70bf2947b049
Superheterodyne on 6 radio tubes, including the "magic eye".
,86e6f450b8cc469628ba70bf2947b049
Bands LW, MW, KW - 7.5 ... 20 MHz, UKW - 85 ... 100 MHz.
,86e6f450b8cc469628ba70bf2947b049
IF for AM - 468 kHz, for VHF - 10.7 MHz.
,86e6f450b8cc469628ba70bf2947b049
AGC.
,86e6f450b8cc469628ba70bf2947b049
Rated output power 3 W.
,86e6f450b8cc469628ba70bf2947b049
Loudspeakers with a diameter of 1 piece - 240 mm and 2 pieces - 180 mm each.
,86e6f450b8cc469628ba70bf2947b049
The range of sound frequencies reproduced by VHF loudspeakers is 60 ... 16000 Hz.
,86e6f450b8cc469628ba70bf2947b049
Dimensions of the model are 610x250x350 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight 11.9 kg.
,86e6f450b8cc469628ba70bf2947b049
Gold-effect trim and chassis.
,86e6f450b8cc469628ba70bf2947b049
Large selection of sound tones.
,86e6f450b8cc469628ba70bf2947b049
The price of the model at the time of release is 349 DM.
