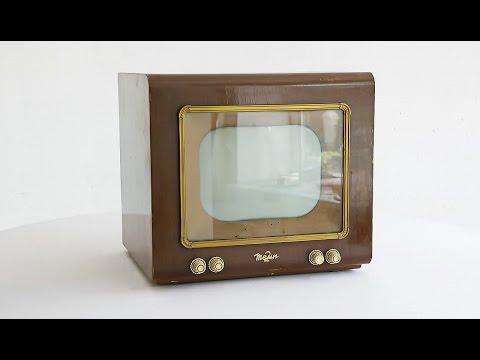

The Temp-2 b / w image TV set was produced by the Moscow Radio Plant from October 1955 to December 1956 inclusively.
,86e6f450b8cc469628ba70bf2947b049
The second-class TV "Temp-2" has a number of design and circuit features in comparison with the TV "Temp", but the design, design and all parameters remained the same.
,86e6f450b8cc469628ba70bf2947b049
The device works in any of 5 channels, receives FM radio stations in three sub-bands, reproduces gramophone and magnetic recordings.
,86e6f450b8cc469628ba70bf2947b049
It is powered from a network of 110, 127, 220 V. It is assembled in a polished wooden case measuring 525x575x475 mm, imitated for valuable species of wood.
,86e6f450b8cc469628ba70bf2947b049
The weight of the device is 44 kg.
,86e6f450b8cc469628ba70bf2947b049
On the front panel, under a protective glass, there is a 40LK1B tube screen.
,86e6f450b8cc469628ba70bf2947b049
There are four main control knobs under the screen.
,86e6f450b8cc469628ba70bf2947b049
On the right of the case, a double knob is displayed: the outer one is the receiver settings "tuning" and the inner "subband switch" are used for tuning the local oscillator and switching channels.
,86e6f450b8cc469628ba70bf2947b049
Eight auxiliary handles are brought out to the rear wall.
,86e6f450b8cc469628ba70bf2947b049
Two knobs for adjusting the linearity of the image and the horizontal size are brought out on the chassis under the slot.
,86e6f450b8cc469628ba70bf2947b049
These adjusters are installed at the factory and sealed with paper.
,86e6f450b8cc469628ba70bf2947b049
They are usually not used during operation.
,86e6f450b8cc469628ba70bf2947b049
The rear of the unit is closed by a removable slotted wall for access to sockets, switches and control knobs.
,86e6f450b8cc469628ba70bf2947b049
A block with a power cord is fixed on the back wall; when it is removed, the power is automatically turned off.
,86e6f450b8cc469628ba70bf2947b049
To reproduce sound on the reflective board, two loudspeakers are installed on the left side of the case.
,86e6f450b8cc469628ba70bf2947b049
The TV set is designed to be connected to the antenna with a 300-ohm symmetrical KATV-300 cable.
,86e6f450b8cc469628ba70bf2947b049
The antenna input is switched on using a special SDN antenna block that comes with the TV.
,86e6f450b8cc469628ba70bf2947b049
If you have an antenna with a PK-1 unbalanced 75-ohm coaxial cable entry, you will use an SDN device and a jack with a plug.
,86e6f450b8cc469628ba70bf2947b049
For FM reception, a TV antenna is used.
,86e6f450b8cc469628ba70bf2947b049
The TV is assembled on 22 lamps.
,86e6f450b8cc469628ba70bf2947b049
Sensitivity 250 μV.
,86e6f450b8cc469628ba70bf2947b049
Power consumption 240 W, radio reception 150 W.
