Rekord-61M2 1962
Sorry, this page is not translated yet. Automatic translation used.

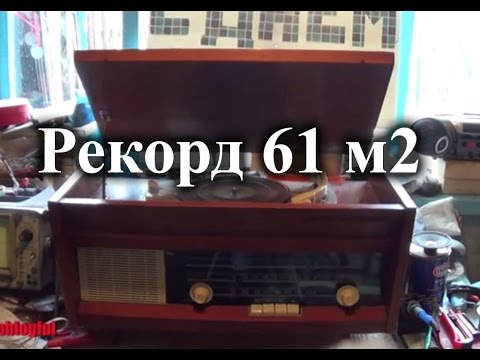

Radiola of the 3rd class "Record-61M2" since 1962 was produced by the Irkutsk Radio Receivers Plant. The radiola was created on the basis of the Berd Radio Plant model '' Record-61 ''. In the new radio, the scale is changed, printed wiring and a key switch are used. A new 2GD-8 loudspeaker was installed in the radio, the circuit was improved, the chassis was changed. Operating frequency ranges: LW, CB and HF - 3.95 ... 12.1 MHz (75.9 ... 24.8 m). IF "u003d 465 kHz. Sensitivity in the ranges LW, MW 200 μV, at HF "u200b"u200b300 μV. Adjacent Channel Selectivity 26 dB. The rated output power is 0.5 watts. The band of reproduced frequencies at reception of 150 ... 3500 Hz, at reproduction of a gramophone record of 150 ... 6000 Hz. Power consumption when receiving 40 watts, when playing back a record of about 55 watts. Dimensions of the radio - 600x320x270 mm. Weight 13 kg. Since 1962, the Berdsky Radio Plant has been releasing the same radio series in small series, but still under the old name "Record-61". ,null,ru,null,null,null,null
Documentation:
Video:
Information from collection of Valery Khartchenko
