Since 1973, portable radio receivers "Ocean-204" and "Ocean-205" have been produced by the Minsk Radio Plant.
,86e6f450b8cc469628ba70bf2947b049
The Ocean-204 radio receiver differs from the Ocean-205 receiver only in the absence of an indicator for fine tuning and power control.
,86e6f450b8cc469628ba70bf2947b049

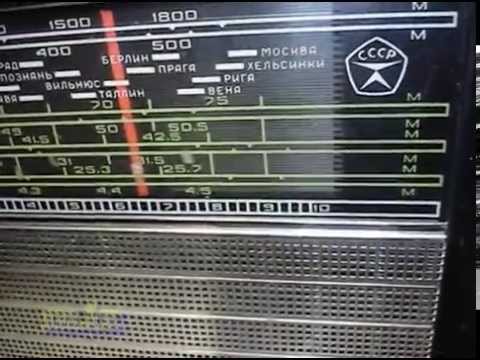

The Ocean-205 or 204 radio receiver operates in the DV, SV, KV (5 sub-bands) and VHF bands.
,86e6f450b8cc469628ba70bf2947b049
In the VHF range there is an AFC system.
,86e6f450b8cc469628ba70bf2947b049
The receiver has tone controls for HF and LF, a dial indicator for fine tuning, indication of supply voltage, scale backlight.
,86e6f450b8cc469628ba70bf2947b049
The sensitivity of the model when working with a magnetic antenna in the ranges: DV 1 mV / m, SV 0.7 mV / m, when working with a telescopic antenna in the sub-ranges: KB 150 ... 250 μV, in the VHF range 35 μV.
,86e6f450b8cc469628ba70bf2947b049
The band of reproducible sound frequencies in AM 125 ... 4000 Hz, in VHF 125 ... 10000 Hz.
,86e6f450b8cc469628ba70bf2947b049
Output power 0.5 W, maximum 0.75 W.
,86e6f450b8cc469628ba70bf2947b049
Power supply of the receiver from the network 127/220 V, or 6 elements 373. Dimensions of the model are 367x255x119 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight 4 kg.
,86e6f450b8cc469628ba70bf2947b049
The price of the Ocean-204 radio is 139 rubles, and the Ocean-205 is 145 rubles.
,86e6f450b8cc469628ba70bf2947b049
The Ocean-204 radio receiver was released in an insignificant series.
,86e6f450b8cc469628ba70bf2947b049
The Ocean-205 radio receiver was also produced in export versions with the name Selena (B-206, 207, 208, 209), which differed in the wavelengths adopted in this country.
,86e6f450b8cc469628ba70bf2947b049
Since 1976, subsequent batches of receivers have been produced according to the Ocean-209 receiver scheme.
