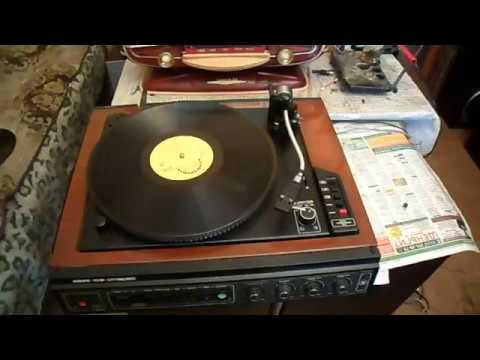

The network transistor microphone "Vega-108-stereo" has been producing the Berdsk radio plant since 1979.
,86e6f450b8cc469628ba70bf2947b049
Stereo microphone 1st class "Vega-108-stereo" is designed to play mono and stereo phonograph records, can be used to record phonograms from mono and stereo phonograms to a tape recorder, as an amplifier for listening to programs from external sources with a lower quality playback system
,86e6f450b8cc469628ba70bf2947b049
...
,86e6f450b8cc469628ba70bf2947b049
The model uses electronic overload protection of the output transistors.
,86e6f450b8cc469628ba70bf2947b049
When the protection is triggered, there is no sound in the speaker.
,86e6f450b8cc469628ba70bf2947b049
Protection turns off immediately after overload elimination.
,86e6f450b8cc469628ba70bf2947b049
Closed-type speakers with a resistance of 4 ohms and a nominal frequency range of 63 ... 18000 Hz with an uneven frequency response of 15 dB.
,86e6f450b8cc469628ba70bf2947b049
The band of reproducible sound frequencies in terms of sound pressure is 63 ... 18000 Hz.
,86e6f450b8cc469628ba70bf2947b049
Rated output power - 2x10 W.
,86e6f450b8cc469628ba70bf2947b049
SOI 0.7%.
,86e6f450b8cc469628ba70bf2947b049
Background level -50 dB.
,86e6f450b8cc469628ba70bf2947b049
Sensitivity from the input of the tape recorder and universal 250 mV;
,86e6f450b8cc469628ba70bf2947b049
receiver 25 mV.
,86e6f450b8cc469628ba70bf2947b049
There are tone controls.
,86e6f450b8cc469628ba70bf2947b049
Power consumed from the network is 20 W.
,86e6f450b8cc469628ba70bf2947b049
Electrophone unit dimensions - 465x420x210 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight 15 kg.
,86e6f450b8cc469628ba70bf2947b049
Dimensions of one speaker 420x250x190 mm.
,86e6f450b8cc469628ba70bf2947b049
Speaker weight 8 kg.
,86e6f450b8cc469628ba70bf2947b049
