The color-music electronic designer "Raduga" has been produced, presumably since 1988, by the Pravdinsky Radio Plant.
,86e6f450b8cc469628ba70bf2947b049
Nizhny Novgorod Region.
The CMU kit was disassembled, only the board was assembled at the factory.
,86e6f450b8cc469628ba70bf2947b049
It was necessary to assemble the structure myself, to unsolder the wires.
,86e6f450b8cc469628ba70bf2947b049
Power supply 12 volts from the external unit.
,86e6f450b8cc469628ba70bf2947b049
The lanterns are removable, they were attached to the stand with a central spring washer.
,86e6f450b8cc469628ba70bf2947b049
This washer was also a carrying handle.
,86e6f450b8cc469628ba70bf2947b049
The lanterns could be placed in different directions, the length of the wires was about 1.5 meters.
,86e6f450b8cc469628ba70bf2947b049
The wires were wound on the back of the lantern on metal staples.
,86e6f450b8cc469628ba70bf2947b049
The sensitivity adjustment is available for each channel, and the overall sensitivity is also adjustable.
,86e6f450b8cc469628ba70bf2947b049

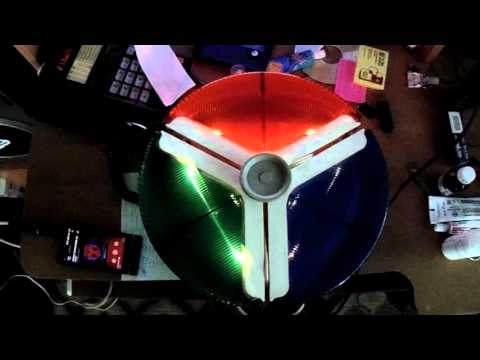

Lights in red are tuned for low-frequency peaks, green for mid-frequency, blue for high-frequency.
,86e6f450b8cc469628ba70bf2947b049
The backlight is neutral, with 3.5 volt bulbs connected in series.
,86e6f450b8cc469628ba70bf2947b049
Adjustment with correct assembly and wiring was not required, the CMU started working immediately after assembly.
