Saljut-001 1980
Sorry, this page is not translated yet. Automatic translation used.

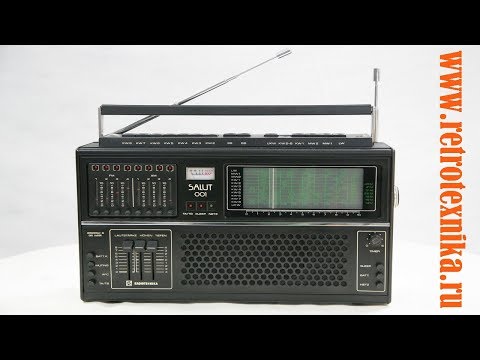

Since 1980, the portable radio receiver Salyut-001 has produced the AS Popov Riga Radio Factory. The high-class radio "Salyut-001" was created by specialists of Orbita design bureau and Stern-Radio enterprise. The receiver is characterized by high performance, a number of consumer qualities and is not inferior to the best world models. Electronic tuning and AFC in all bands, touch switching of fixed settings (and there are 8, 4 in VHF and 4 in the rest), the ability to automatically turn off the receiver at a specified time, double frequency conversion when receiving in KB ranges, multi-loop AGC system not a full list of circuit features applied to the receiver. The receiver is built on the functional block principle. The IF-FM unit, the volume and tone control unit, the retractable power cord cassette are developed by German specialists, the rest and the receiver design by the Orbita design office. The export version was called '' EuroMatic-001 '', '' Salute-001 '' and differed in other frequencies of the HF and VHF bands. The radio receiver is intended for reception in the ranges: DV 150 ... 350 kHz, CB-1 525 ... 880 kHz, CB-2 880 ... 1605 kHz, KV-1 3.45 ... 5.8 MHz, KV-2 5 9 ... 6.2 MHz, HF-3 7.1 ... 7.35 MHz, HF-4 9.5 ... 9.8 MHz, HF-5 11.7 ... 12.1 MHz and VHF 65.8 ... 73MHz In the ranges of DV, SV-1 and SV-2 reception is conducted on separate magnetic antennas, in the ranges of KB and VHF to telescopic. It is possible to connect a tape recorder (for recording or playback), a player, an external loudspeaker and headphones, an external power source. The receiver has switchable BSN systems in the UHF and AFC bands in all bands, a device for auto-shutdown at a specified time, a block of fixed settings for eight radio stations with touch controls. The transition from a fixed setting to a smooth one occurs automatically when you touch the receiver's smooth tuning knob (with battery power, this is indicated by the ignition of the backlight lamps of the scale). The receiver can be powered from 6 A-373 elements, the AC network through the built-in power supply unit and the vehicle"™s on-board network.The efficiency is maintained when the power is reduced to 5.6 V. The sensitivity to the internal antenna in the ranges: A-1, MF-1, M-2 - 0.5, KV-1 ... KV-5 - 0.15, VHF - 0.01 mV / m From the input of the external antenna, in the ranges: DV, SV-1, SV-2, KV-1 ... KV-5 - 100, VHF - 6 µV. The selectivity of the neighboring channel in the ranges of LW, ST-1, ST-2 - 50 dB. The selectivity for the mirror channel in the ranges: DV - 60, SV-1, SV-2 - 64, KV-1 - 26 KV-2 ... KV-5 (on the first mirror channel) about 40 dB, KV-2 .. .KV-5 (on the second) 60 dB, VHF 50 dB. IF in the ranges: DV, SV-1, SV-2, KV-1 - 465 KHz, KV-2 ... KV-5 - 1.84 MHz (first) and 465 KHz (second) VHF - 10.7 MHz . The range of reproduced sound frequencies in the AM path is 80 ... 4000 Hz, FM 80 ... 12500 Hz. Rated output power1, maximum (from the mains) 4 watts. Dimensions of receiver 480x112x280 mm. Weight with batteries 7.7 kg. Radio developed in 1977
Documentation:
Video:
Information from collection of Valery Khartchenko
