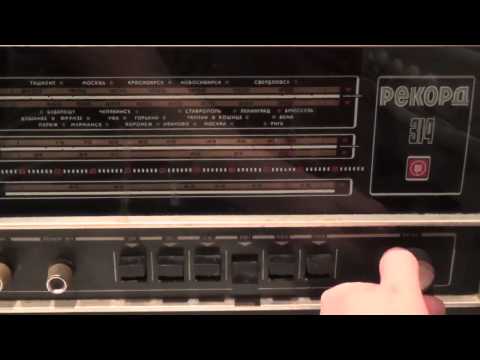

Radiola "Record-314" has been produced since 1976 by the Berdsk radio plant.
,86e6f450b8cc469628ba70bf2947b049
The radiola consists of a class 3 radio receiver and an EPU, which allows playing gramophone records of any format.
,86e6f450b8cc469628ba70bf2947b049
The receiver operates in the LW, MW bands, two HF sub-bands and in the VHF-FM band.
,86e6f450b8cc469628ba70bf2947b049
Sensitivity in the ranges DV, SV - 200 μV, KB - 300 μV, VHF - 30 μV.
,86e6f450b8cc469628ba70bf2947b049
Selectivity in LW and MW ranges 26 dB.
,86e6f450b8cc469628ba70bf2947b049
Rated output power 0.5 W.
,86e6f450b8cc469628ba70bf2947b049
The frequency band in the AM path is 125 ... 3500 Hz, in the FM and during the operation of the EPU 125 ... 7100 Hz.
,86e6f450b8cc469628ba70bf2947b049
Powered by 127 or 220 V. Power consumption 75 W.
,86e6f450b8cc469628ba70bf2947b049
The dimensions of the model are 673x320x238 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight 13 kg.
