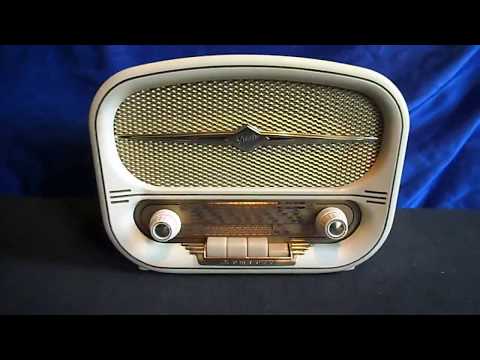

The network tube radio "Graetz Komtess 214W" has been produced since 1955 by the "Graetz" company, Germany.
,86e6f450b8cc469628ba70bf2947b049
AM / FM superheterodyne on 5 radio tubes.
,86e6f450b8cc469628ba70bf2947b049
Bands: LW - 145 ... 350 kHz, MW - 540 ... 1620 kHz, UKW - 87 ... 102 MHz.
,86e6f450b8cc469628ba70bf2947b049
IF for AM - 460 kHz, for FM - 10.7 MHz.
,86e6f450b8cc469628ba70bf2947b049
Powered by AC 110, 127, 150, 220 ... 240 volts, 50 Hz.
,86e6f450b8cc469628ba70bf2947b049
Loudspeaker with a diameter of 13 cm. Maximum output power 3 W.
,86e6f450b8cc469628ba70bf2947b049
The range of reproducible sound frequencies in the UKW range is 80 ... 13000 Hz, in the AM - 90 ... 5000 Hz.
,86e6f450b8cc469628ba70bf2947b049
Model dimensions - 315 x 230 x 170 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight - 4.3 kg.
