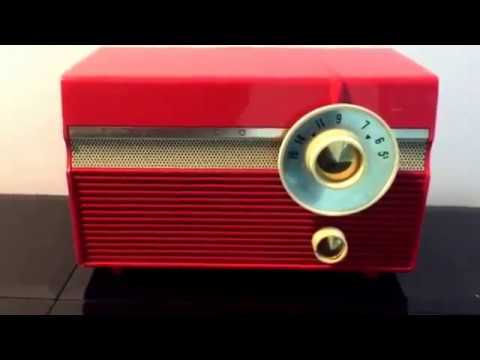

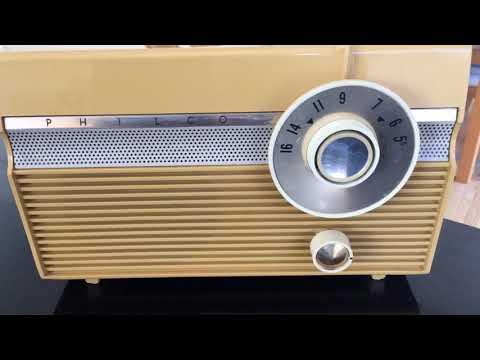

Network tube radios "Philco E-812" and "Philco E-813" were produced respectively from 1956 and 1957 by the company "Philco", USA.
,86e6f450b8cc469628ba70bf2947b049
Both models are the same in their scheme, design and design, therefore only one model is described.
,86e6f450b8cc469628ba70bf2947b049
Desktop superheterodyne on 5 radio tubes for receiving local broadcasting stations (housewife's radio).
,86e6f450b8cc469628ba70bf2947b049
MW range - 540 ... 1620 kHz.
,86e6f450b8cc469628ba70bf2947b049
IF - 455 kHz.
,86e6f450b8cc469628ba70bf2947b049
The sensitivity of the receiver with a loop antenna is 5 mV / m, with an external antenna of about 200 μV.
,86e6f450b8cc469628ba70bf2947b049
Selectivity 24 dB.
,86e6f450b8cc469628ba70bf2947b049
Maximum output power 0.9W.
,86e6f450b8cc469628ba70bf2947b049
The loudspeaker diameter is 10.2 centimeters.
,86e6f450b8cc469628ba70bf2947b049
The range of reproducible sound frequencies is 100 ... 4500 Hz.
,86e6f450b8cc469628ba70bf2947b049
Power supply from a network of direct or alternating current, 60 Hz, with a voltage of 117 volts (105-120 volts).
,86e6f450b8cc469628ba70bf2947b049
Power consumption from AC mains 60 W.
