Romantik 1965
Sorry, this page is not translated yet. Automatic translation used.

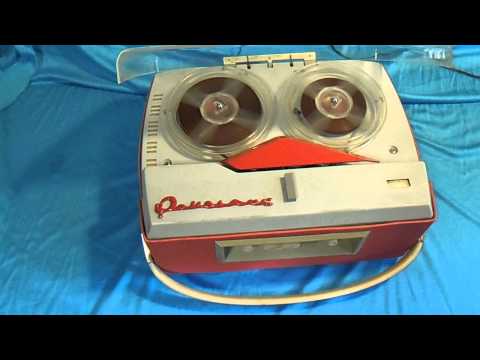

The portable reel-to-reel tape recorder "Romantic" since the beginning of 1965 has been produced by the Gorky plant named after. ,86e6f450b8cc469628ba70bf2947b049 G.I. Petrovsky. ,86e6f450b8cc469628ba70bf2947b049 The tape recorder is designed for recording and playing sound phonograms. ,86e6f450b8cc469628ba70bf2947b049 The speed of the magnetic tape is 9.53 cm / sec. ,86e6f450b8cc469628ba70bf2947b049 Detonation 0.3%. ,86e6f450b8cc469628ba70bf2947b049 Continuous recording time using spools of 180 meters of tape is 2x30 minutes. ,86e6f450b8cc469628ba70bf2947b049 The operating frequency range on the LV is 60 ... 10,000 Hz, on your own speaker - 150 ... 10,000 Hz. ,86e6f450b8cc469628ba70bf2947b049 The noise level of the recording-playback channel is 45 dB. ,86e6f450b8cc469628ba70bf2947b049 The rated output power is 0.8 W with nonlinear distortion on the LV - 4%, and on the loudspeaker equivalent 5%. ,86e6f450b8cc469628ba70bf2947b049 Power supply from the network through an external rectifier or from 8 Mars elements. ,86e6f450b8cc469628ba70bf2947b049 Battery life with fresh batteries is about 5 hours at medium volume. ,86e6f450b8cc469628ba70bf2947b049 Power consumption from the network is about 12 watts. ,86e6f450b8cc469628ba70bf2947b049 The dimensions of the tape recorder are 330x150x150 mm. ,86e6f450b8cc469628ba70bf2947b049 Weight with batteries 5 kg. ,86e6f450b8cc469628ba70bf2947b049 The construction of the tape recorder is block. ,86e6f450b8cc469628ba70bf2947b049 The circuit is made by surface mounting on a getinax board attached to the case. ,86e6f450b8cc469628ba70bf2947b049 The loudspeaker covers and side grilles are made of plastic. ,86e6f450b8cc469628ba70bf2947b049 The recording and playback level controls, as well as the LPM control buttons, are displayed on the front front panel and are bordered by an overlay. ,86e6f450b8cc469628ba70bf2947b049 There is a battery compartment at the bottom of the device. ,86e6f450b8cc469628ba70bf2947b049 There is a dial gauge to control the recording level and battery consumption. ,86e6f450b8cc469628ba70bf2947b049 The tape recorder circuit was corrected several times. ,86e6f450b8cc469628ba70bf2947b049 ,null,ru,null,null,null,null
Documentation:
Video:
Information from collection of Valery Khartchenko
