Sokol-308 1976
Sorry, this page is not translated yet. Automatic translation used.

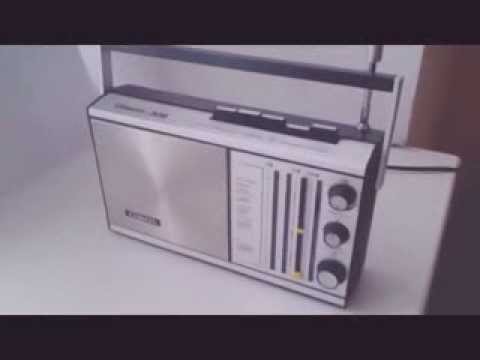

Since the 1st quarter of 1976, the Sokol-308 portable all-wave radio receiver has been produced by the Moscow PO "TEMP". ,86e6f450b8cc469628ba70bf2947b049Unlike previous models, integrated circuits are used here, automatic frequency control in the VHF range. ,86e6f450b8cc469628ba70bf2947b049Sensitivity in the MW, KB ranges when receiving on a magnetic antenna, respectively, 1.5 and 0.8 mV / m, in the VHF-FM range on a telescopic antenna 100 µV. ,86e6f450b8cc469628ba70bf2947b049The band of reproducible frequencies when receiving stations operating in the MW and KB ranges is 315 ... 3550 Hz, and in the VHF-FM range - 315 ... 7100 Hz. ,86e6f450b8cc469628ba70bf2947b049Rated output power - 0.3 W, maximum 0.5 W. ,86e6f450b8cc469628ba70bf2947b049Supply voltage 9 volts. ,86e6f450b8cc469628ba70bf2947b049Dimensions of the radio receiver - 240x140x70 mm, weight with batteries 1.3 kg. ,86e6f450b8cc469628ba70bf2947b049The price of the receiver with batteries is 77 rubles 78 kopecks. ,86e6f450b8cc469628ba70bf2947b049An export version of the Sokol-308 radio receiver was also produced with the usual FM and European VHF FM band.,86e6f450b8cc469628ba70bf2947b049,null,ru,null,null,null,null
Documentation:
Video:
Information from collection of Valery Khartchenko
