Avrora 1967
Sorry, this page is not translated yet. Automatic translation used.
The three-program Aurora receiver from 1967 to 1973 produced the Lianozovsky EMZ. The issue of PT Aurora is dedicated to the 50th anniversary of the October Revolution. The PT is designed to receive 3 broadcast programs, the main LF and two HF transmitted over the broadcast network. Unlike a radio point consisting of a loudspeaker, a transformer and a volume control, the PT contains a direct amplification radio receiver with a fixed tuning at frequencies of 78 and 120 kHz. PT was produced in two versions, for operation from a broadcasting network with a voltage of 15 and 30 volts, as well as in several design options. Rated output power 150 mW, sensitivity 250 mV. The band of sound frequencies 100 ... 6300 Hz with frequency response unevenness in terms of sound pressure 18 dB. It is possible to connect a tape recorder for recording. Power supply from AC mains. Power consumption 4 watts. Dimensions PT - 330x210x130 mm. Weight - 2.9 kg.
Documentation:

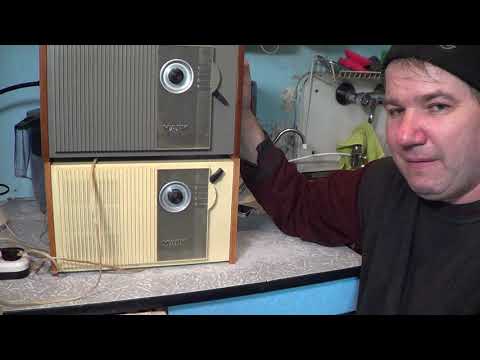

Video:
Information from collection of Valery Khartchenko
