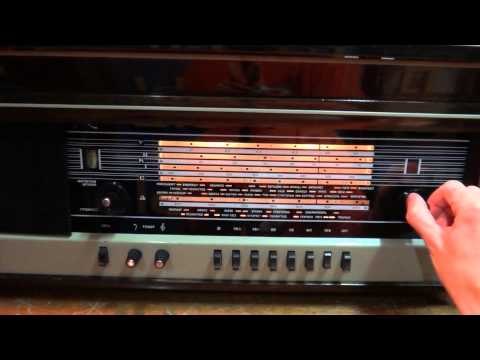

Radiola network lamp "Ural-110" since 1970 was produced by the Sarapul plant named after.
,86e6f450b8cc469628ba70bf2947b049
Ordzhonikidze.
,86e6f450b8cc469628ba70bf2947b049
Radiola has ranges: DV, SV, KB-II 75.9 ... 40.5 m, KB-I 32.0 ... 24.8 m and VHF.
,86e6f450b8cc469628ba70bf2947b049
Sensitivity with an external antenna in the ranges DV, SV - 20 μV, KV - 50 μV, VHF - 5 μV, with an internal magnetic antenna in the ranges DV, SV 1.5 mV / m.
,86e6f450b8cc469628ba70bf2947b049
IF AM path 465 kHz, in FM 6.5 MHz.
,86e6f450b8cc469628ba70bf2947b049
Selectivity on the adjacent channel in AM - 60 dB.
,86e6f450b8cc469628ba70bf2947b049
Bandwidth in AM at "Narrow Band" 5 kHz, "Wide Band" 9 kHz, "Local Reception" 14 kHz.
,86e6f450b8cc469628ba70bf2947b049
The bandwidth in the FM path is 170 kHz.
,86e6f450b8cc469628ba70bf2947b049
Selectivity on the mirror channel in the ranges: DV 64 dB, SV 46 dB, KV 20 dB, VHF 28 dB.
,86e6f450b8cc469628ba70bf2947b049
AGC provides a change in the signal at the output by 12 dB, when it changes at the input by 40 dB.
,86e6f450b8cc469628ba70bf2947b049
The range of reproducible frequencies of the AM path in the "UP" position is 80 ... 4000 Hz, "SHP" 80 ... 6000 Hz, "MP" 80 ... 10000 Hz.
,86e6f450b8cc469628ba70bf2947b049
The range of reproducible frequencies of the FM path is 80 ... 12000 Hz, recordings 80 ... 10000 Hz.
,86e6f450b8cc469628ba70bf2947b049
Separate tone control for bass and treble.
,86e6f450b8cc469628ba70bf2947b049
Rated output power 2W, maximum 3.5W.
,86e6f450b8cc469628ba70bf2947b049
The sensitivity from the pickup jacks is 0.24 V. The speaker consists of two 4GD-28M loudspeakers and one side 1GD-19M loudspeaker.
,86e6f450b8cc469628ba70bf2947b049
The radio is equipped with an EPU type IIEPU-40-127, which has 3 speeds of rotation of the disk, semi-automatic switching on and automatic switching off.
,86e6f450b8cc469628ba70bf2947b049
The power consumption from the mains when receiving radio stations is 55 W, when playing a record 65 W.
,86e6f450b8cc469628ba70bf2947b049
Dimensions of the radio in the desktop version are 773 x 311 x 288 mm, in the floor version - 773 x 311 x 770 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight without packaging 21 kg.
