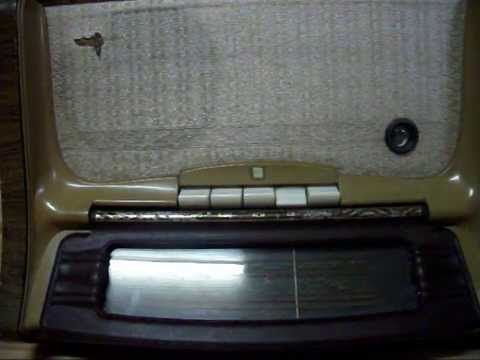

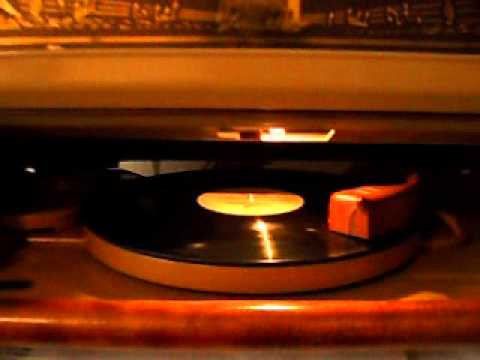

Radiola network lamp "Irtysh" was produced from 1954 to 1959 at the Omsk plant number 373 MAP (electrical engineering plant Karl Marx). Radiol is similar in design, layout and design to the radio "Daugava". The difference in the design of the scale and the inscriptions on the loudspeaker panel and the back wall. Radiola "Irtysh" consists of a 6-lamp receiver class 2 combined with a universal EPU. Assembled in a wooden case, with an imitation of valuable species. Dimensions radioli 550h400h320 mm, weight 21 kg. Ranges: DV 150 ... 415 kHz, CB 520 ... 1600 kHz, KV1 3.95 ... 7.5, KV2 9.0 ... 12.1 MHz. Sensitivity to LW, GF 150, KV 250 µV. Rated output power 2 watts. The power consumption at reception 75, the operation of the EPU 85 watts.
