Network tape recorders "Orbita-204S" and "Orbita-205S" have been produced since 1977 and 1980 by the Leningrad plant "Pyrometr".
,86e6f450b8cc469628ba70bf2947b049

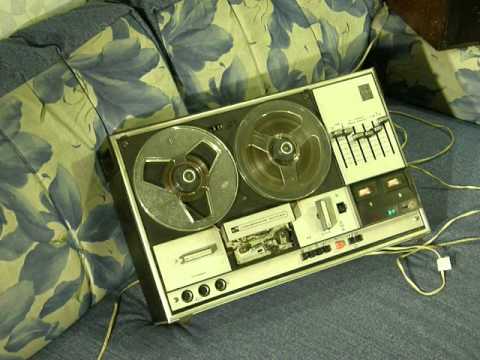

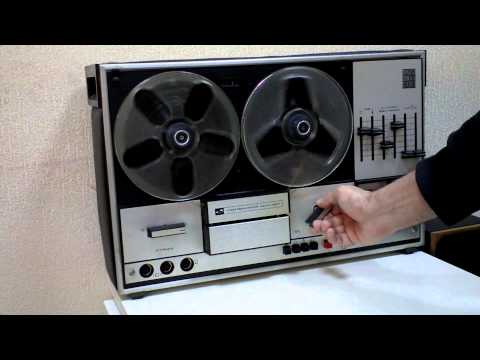

Stereophonic two-speed 4-track tape recorder "Orbita-204-stereo" is intended for recording and playback of mono and stereo phonograms on magnetic tape A4407-6B and 4409-6B.
,86e6f450b8cc469628ba70bf2947b049
The main operating position of the tape recorder is vertical, but horizontal operation is also allowed.
,86e6f450b8cc469628ba70bf2947b049
The tape recorder provides high-quality sound of the recorded programs when using external speakers or stereo telephones.
,86e6f450b8cc469628ba70bf2947b049
The tape recorder records from a microphone, an electrophone, a radio receiver, and another tape recorder.
,86e6f450b8cc469628ba70bf2947b049
The tape recorder is provided;
,86e6f450b8cc469628ba70bf2947b049
adjustment of volume, balance, timbres, recording level, pause button, setting the recording level with a stationary tape, tape consumption counter.
,86e6f450b8cc469628ba70bf2947b049
Power consumption 150/100 W.
,86e6f450b8cc469628ba70bf2947b049
Belt speed 19.05 and 9.53 cm / s.
,86e6f450b8cc469628ba70bf2947b049
Detonation coefficient at a speed of 19.05 cm / s 0.2%;
,86e6f450b8cc469628ba70bf2947b049
9.53 cm / s 0.3%.
,86e6f450b8cc469628ba70bf2947b049
Operating frequency range at speed: 19.05 cm / s - 40 ... 16000 Hz;
,86e6f450b8cc469628ba70bf2947b049
9.53 cm / s - 63 ... 12500 Hz.
,86e6f450b8cc469628ba70bf2947b049
The rated output power to the speaker is 2x5 W, the maximum is 2x8 W.
,86e6f450b8cc469628ba70bf2947b049
Dimensions of the model are 175 x 350 x 530 mm and 190 x 350 x 530 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight 15 kg.
,86e6f450b8cc469628ba70bf2947b049
The numbers after / are the data for the "205" model.
,86e6f450b8cc469628ba70bf2947b049
Since 1982, the plant has been producing the Orbita-205A-stereo tape recorder, similar to the Orbita-205S tape recorder.
