Tembr-2S 1972
Sorry, this page is not translated yet. Automatic translation used.

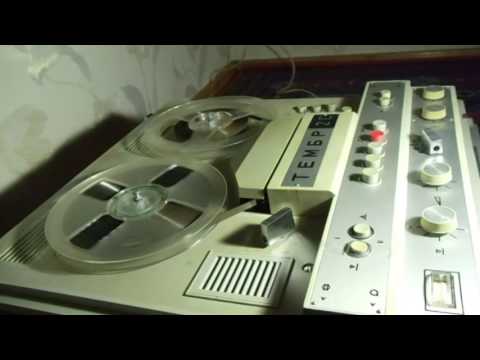

Reel tape recorder "Timbre-2C" since 1972 produced the Gorky plant them. Petrovsky. The '' Timbre-2C '' tape recorder was developed on the basis of the '' Timbre-2 '' model in 1970, but its production was launched only in 1972. The recorder '' Timbre-2C '' is intended for equipping ships of the sea, river and fishing fleets, including for use in the broadcasting system. The tape recorder was produced in desktop and console versions. It can be used for high-quality recording and playback of music and speech or special signals. Number of tracks 2. The model used coils that accommodate 525 m of magnetic tape. Recording or playback time when working with A4411-6B type tape: at a speed of 19.05 cm / s 2x46 min; 9.53 cm / s 2x90 min; 4.76 cm / s 2x180 min. The power consumption in recording and playback mode is 100, rewind 200 watts. Rated output power 2 watts. Operating frequency range at a speed of 19.05 cm / s 40 ... 16000 Hz; 9.53 cm / s 63 ... 12500 Hz; 4.76 cm / s 63 ... 6300 Hz. Knock factor: at a speed of 19.05 cm / s 0.2%, 9.53 cm / s 0.3%, 4.76 cm / s 0.4%. The tape recorder provides a voltage of 0.5 V at the LV. At the output of additional loudspeakers, the power is 2 W with a load of 16 Ohms.
Information from collection of Valery Khartchenko
