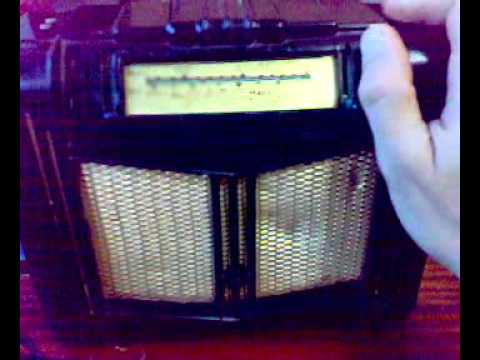

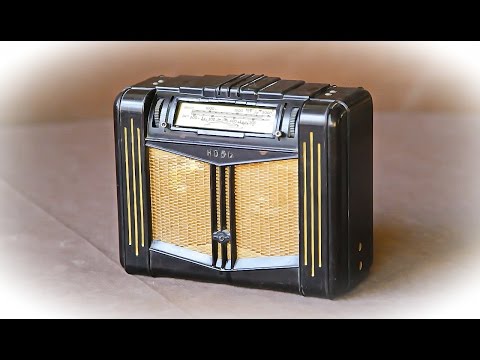

The radio battery "Nov" since 1956 produced the Voronezh radio plant. The name of the radio is associated with rural nova, steppe expanses. Radio '' Nov '' - battery stationary superheterodyne, intended for residents of rural areas, where in the years of its release there was no electricity. It is made on four radio tubes of the finger type series: 1Ð2П, 1К2П, 1Б2П, 2П1П. The radio is powered by two dry batteries "Energy" (anode) and one "Screen" (filament). The radio '' Nov '' has the following frequency and wave bands: DV - 150 ... 415 kHz (2000 ... 723 m) and CB - 520 ... 1600 kHz (577..187 m). Sensitivity 400 µV. The adjacent channel selectivity is 20 dB. IF 465 kHz. Power consumption at an average volume of 1.3 watts. The nominal output power of the 1GD-7 (1GD-8) loudspeaker is 100 mW with distortion of ~ 5%. The range of reproducible sound frequencies 200 ... 3000 Hz. Dimensions of the model 250h210h115 mm, weight 2.7 kg. The price is 21 rubles 70 kopecks after the monetary reform of 1961. According to its design, construction and electrical circuit "Nov" is similar to the receiver "Road".
