Vega-106-stereo 1976
Sorry, this page is not translated yet. Automatic translation used.

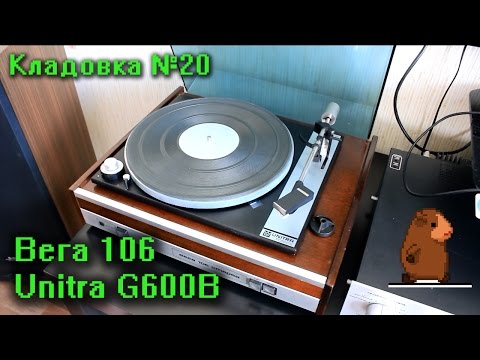

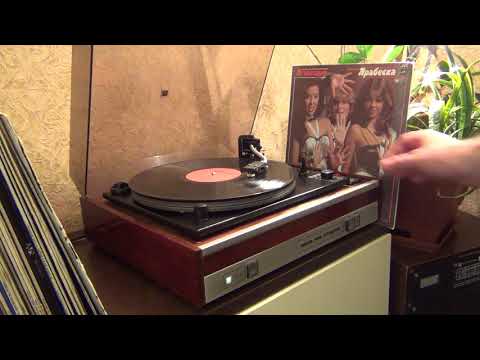

The electric player "Vega-106-stereo" from I-kv 1976 to 1981 inclusively released the Berd radio plant. The first-class stereo stereo "VEGA-106 stereo" electric player is designed to play all formats of discs at a disc rotation speed of 16, 33 and 45 rpm, and later (from 1978) only 33 and 45 rpm. The player uses a magnetoelectric pickup, there is an adjustment of the rotational speed of the disc according to the stroboscope, static balancing of the pickup, adjustment of the reduced weight and the microlift. The output frequency range is 31.5 ... 16000 Hz. The power consumed from the network is 30 watts. The dimensions of the turntable are 410Ñ…350Ñ…170 mm, weight is 13 kg. Price 160 rubles. Most of the players were produced at two speeds with the EDA G-600 and G-602. In the first editions, even four-speed (16, 33, 45 and 78 rpm) power-operated units were installed.
Documentation:
Video:
Information from collection of Valery Khartchenko
