Melodija MG-56 1956
Sorry, this page is not translated yet. Automatic translation used.

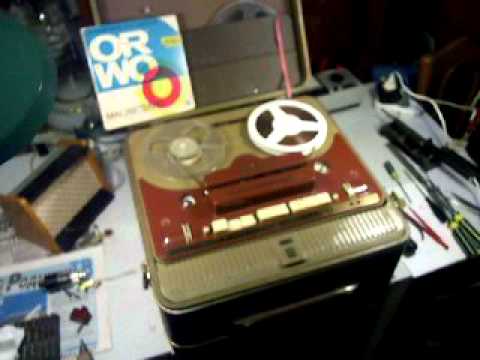

Since 1956, the Melody MG-56 tape recorder has been produced by the Novosibirsk plant Tochmash. ,86e6f450b8cc469628ba70bf2947b049 It is copied from the German tape recorder "Grundig TK-820", 1955 (first photo). ,86e6f450b8cc469628ba70bf2947b049 The tape recorder "Melody MG-56" is intended for recording and reproducing sound programs on a magnetic tape of type 2 with reels No. 18. The recording of phonograms is two-track. ,86e6f450b8cc469628ba70bf2947b049 The speed of pulling the magnetic tape is 9.53 cm / sec and 19.05 cm / sec. ,86e6f450b8cc469628ba70bf2947b049 The frequency range of the recording or playback channel at a higher speed is 50 ... 10000 Hz, at a lower speed of 100 ... 6000 Hz. ,86e6f450b8cc469628ba70bf2947b049 The rated output power on two 2GD-3 loudspeakers is not less than 2 W. ,86e6f450b8cc469628ba70bf2947b049 Power consumption from the mains when recording is about 100 W, when playing back 80 W. ,86e6f450b8cc469628ba70bf2947b049 The tape recorder has: a recording level indicator and a magnetic tape meter, similar in design, to it; ,86e6f450b8cc469628ba70bf2947b049 pause button; ,86e6f450b8cc469628ba70bf2947b049 LF and HF tone controls; ,86e6f450b8cc469628ba70bf2947b049 shutdown device at the end of the tape roll. ,86e6f450b8cc469628ba70bf2947b049 All kinds of switching in the tape recorder are carried out using conventional and traction relays, as well as using electromagnetic clutches. ,86e6f450b8cc469628ba70bf2947b049 Control of all modes of operation is push-button. ,86e6f450b8cc469628ba70bf2947b049 Assembled tape recorder in a case made of wood and pasted over with decorative material. ,86e6f450b8cc469628ba70bf2947b049 The dimensions of the tape recorder are 420x420x210 mm. ,86e6f450b8cc469628ba70bf2947b049 Weight 24 kg. ,86e6f450b8cc469628ba70bf2947b049 The second image shows an advertisement for the Melody MG-56 tape recorder in the Tekhnika Molodezhi magazine, No. 11, 1957. ,86e6f450b8cc469628ba70bf2947b049 ,null,ru,null,null,null,null
Documentation:
Video:
Information from collection of Valery Khartchenko
