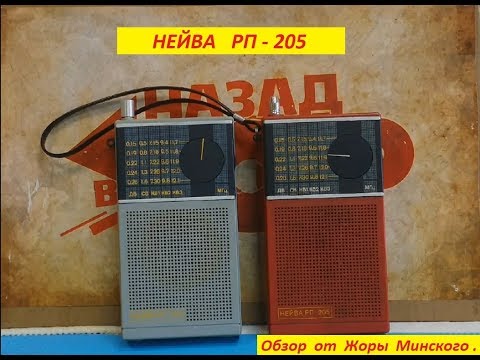

The portable radio receiver "Neiva RP-205" has been produced by the Kamensk-Uralsky Instrument-Making Plant since 1990.
,86e6f450b8cc469628ba70bf2947b049
Neiva RP-205 is a five-band DV, SV and HF (3 sub-bands) portable radio receiver, which is a copy of the Neiva-305 receiver.
,86e6f450b8cc469628ba70bf2947b049
In the radio receiver `` Neiva RP-205 '' in the DV and SV ranges, the reception is carried out on a magnetic antenna, and in HF - on the built-in telescopic one.
,86e6f450b8cc469628ba70bf2947b049
In the IF path, there could be loop filters or a piezoceramic filter, depending on this, the sensitivity in the LW range was 1 mV / m, CB 0.8 mV / m, in the KV subranges of 250 μV.
,86e6f450b8cc469628ba70bf2947b049
With a piezo filter, the sensitivity was lower and amounted to 2.5 mV / m in the DV range, 1.5 mV / m in the SV range, and 450 μV in the KV subranges.
,86e6f450b8cc469628ba70bf2947b049
The selectivity was 20 dB and 30 dB, respectively.
,86e6f450b8cc469628ba70bf2947b049
The rated output power is 100 mW, and the maximum is 200 mW.
,86e6f450b8cc469628ba70bf2947b049
The receiver's power supply is universal, from four A-316 cells, from a "Krona" battery, which was not welcome, or from an external 6-volt power supply unit.
,86e6f450b8cc469628ba70bf2947b049
The initial price of a radio receiver was 61 rubles 80 kopecks, then in 1991 it was increased to 86 rubles 80 kopecks, this was due to the inflationary processes starting in the country.
,86e6f450b8cc469628ba70bf2947b049
In 1992, the production of the Neiva RP-205 radio was discontinued.
