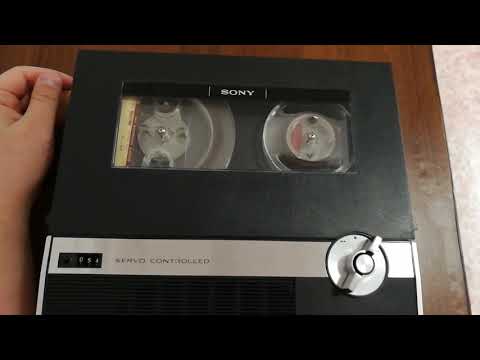

The portable reel-to-reel tape recorder "Sony TC-222" was produced presumably since 1969 by the Japanese corporation "Sony".
,86e6f450b8cc469628ba70bf2947b049
The tape recorder was released under license in several other countries.
,86e6f450b8cc469628ba70bf2947b049
The "Sony TC-222" tape recorder is a 2-speed (4.76 cm / sec and 9.53 cm / sec) 2-track (monophonic) portable reel-to-reel tape recorder.
,86e6f450b8cc469628ba70bf2947b049
Its cassette compartment can accommodate 5 '' reels.
,86e6f450b8cc469628ba70bf2947b049
The tape recorder has 10 transistors and 9 diodes.
,86e6f450b8cc469628ba70bf2947b049
Rated output power 1 W, maximum 2.2 W.
,86e6f450b8cc469628ba70bf2947b049
The range of recorded and reproduced sound frequencies by sound pressure at a higher speed is 100 ... 7500 Hz, at the linear output 80 ... 10000 Hz.
,86e6f450b8cc469628ba70bf2947b049
The frequency of the erasure and bias generator is 32 kHz.
,86e6f450b8cc469628ba70bf2947b049
Powered by 4 x 1.5 V type D batteries or 110, 120, 220, 240 V AC mains. Power consumption 6 W.
,86e6f450b8cc469628ba70bf2947b049
The loudspeaker is elliptical, the smallest diameter is 9.2 cm, the largest is 18 cm. The dimensions of the model are 296x119x303 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight with batteries 4 kg.
