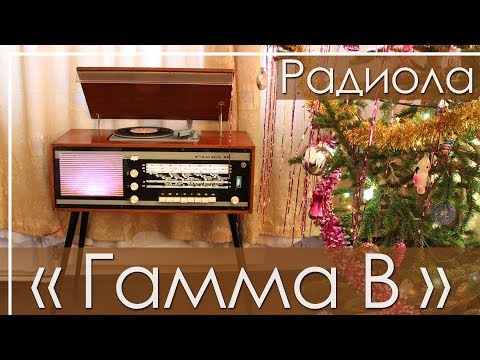

Radiola with a color music prefix "Gamma-V" has been produced since 1965 by the Murom plant "RIP".
,86e6f450b8cc469628ba70bf2947b049
After an unsuccessful attempt to release the "Gamma" radio, the model was finalized and became known as "Gamma-B", where the letter "B" meant - all-wave.
,86e6f450b8cc469628ba70bf2947b049
The radiola is assembled on eight tubes and operates in the ranges DV, SV, KB, VHF and reproduction of the gramophone record.
,86e6f450b8cc469628ba70bf2947b049
Radiola has a prefix for color accompaniment when listening to radio broadcasts and gramophone records.
,86e6f450b8cc469628ba70bf2947b049
Wave ranges: DV, SV standard, KB range is divided into 2 sub-ranges KV1 - 32.0 ... 24.8 m, KV2 - 75.9..40.5 m. Sensitivity in the ranges DV, SV -150 μV, V
,86e6f450b8cc469628ba70bf2947b049
subranges KB - 200 μV, in the VHF range - 20 μV.
,86e6f450b8cc469628ba70bf2947b049
Selectivity 46 dB.
,86e6f450b8cc469628ba70bf2947b049
The audio frequency band when receiving in the AM ranges is 80 ... 6000 Hz (when receiving a powerful station and a wide IF band, with a normal band of 100 ... 4000 Hz), VHF or EPU operation - 80 ... 10000 Hz.
,86e6f450b8cc469628ba70bf2947b049
There are three loudspeakers in the radio: a front 4GD-28 and two side 1GD-28.
,86e6f450b8cc469628ba70bf2947b049
EPU (played 2 types) allows you to listen to regular and LP records.
,86e6f450b8cc469628ba70bf2947b049
Power consumption 100 watts.
,86e6f450b8cc469628ba70bf2947b049
The dimensions of the radio are 635x305x320 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight 21 kg.
,86e6f450b8cc469628ba70bf2947b049
The price of the radio is 138 rubles.
