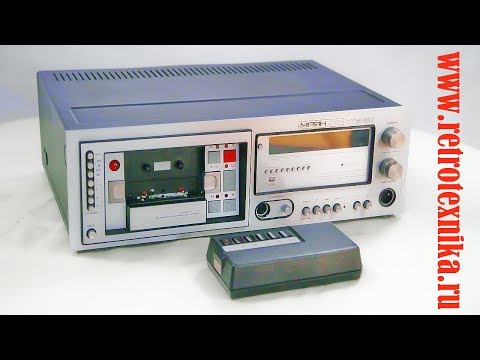

The tape recorder-prefix "Mayak-010-stereo" from I-q 1983 was produced by the Kiev factory "Mayak". The tape recorder "Mayak-010 stereo" is designed for high-quality recording and playback of mono and stereo music and speech programs on A4212-3B and A4205-3 magnetic tapes placed in the MK-60/90 tapes. MP is designed to work with an external amplifier or UCU with speakers and provides recording from a microphone, piezoelectric pickup, radio, another tape recorder, TV; reproduction of recordings; erase recording; tape rewind; indication of the recording level with the possibility of separate and synchronous regulation; automatic stop at the end of the tape; temporary stop; stereo phone connection; electronic tape consumption meter; compander noise reduction system. MP provides the functions of: mixing signals from the microphone and main inputs; the possibility of using two types of magnetic tapes A4205-3 Fe; A4212-3B Cr; indication of the recording level of the average and peak values "‹"‹by the luminescent indicator; control the playback level; control of the recorded or recorded signal on the LP; adjust the volume on stereo phones; recording a pause on a moving tape (Editor); automatic adjustment of the recording current recording and bias; light indication of inclusion in the network; light indication of modes of operation of LPM; work with an external timer device; Work with a built-in timer performing: indication of the current time; time correction; measurement of time intervals; turn off the tape for a specified time; tape recorder operation in a given time interval; wireless infrared remote control modes; quartz stabilization of the speed of the magnetic tape; quasi-sensor control of CVL modes; the ability to work with ribbons with a thickness of 9 and 12 microns; the ability to work LPM Memory mode on the electronic counter; the operation of the machine in automatic mode. The prefix is "‹"‹powered from the network. The power consumption of 55 VA. Knock factor ± 0.15%.The range of frequencies on the LV: 40 ... 14000 Hz with an A4206-3 tape and 31.5 ... 18000 Hz with A4213-3B. The harmonic coefficient on the LV is 1.5%. The relative level of noise and interference in the recording-playback channel is -58 dB, with a WB-80 dB compander system. The sensitivity of the main input 200 mV, microphone 0.08 mV. LV voltage is 500 mV. MP dimensions - 460x340x150 mm. MP weight - 10 kg.
