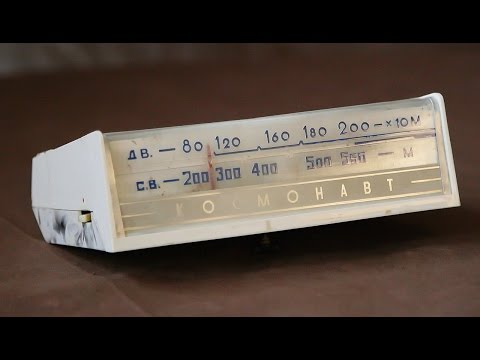

Since 1964, the Cosmonaut transistor radio receiver has been produced by the Sputnik radio plant, mountains.
,86e6f450b8cc469628ba70bf2947b049
Molodechno, Minsk region.
,86e6f450b8cc469628ba70bf2947b049
A feature of the model is a low-voltage power supply, 4.5 V from 3 elements 373, and the receiver retains all its parameters, except for the output power when the battery voltage drops to 2.5 V. The radio receiver is assembled on 8 transistors and operates in the DV and SV ranges.
,86e6f450b8cc469628ba70bf2947b049
The sensitivity is 1.2 and 0.8 mV / m, respectively.
,86e6f450b8cc469628ba70bf2947b049
Adjacent channel selectivity 26 dB.
,86e6f450b8cc469628ba70bf2947b049
The rated output power of the ULF on the 0.5GD-12 loudspeaker is not less than 150 mW, the maximum is 250 mW.
,86e6f450b8cc469628ba70bf2947b049
The range of reproducible sound frequencies is 300 ... 3500 Hz.
,86e6f450b8cc469628ba70bf2947b049
Quiescent current 10 mA.
,86e6f450b8cc469628ba70bf2947b049
Receiver dimensions - 224x168x68 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight 1.7 kg.
,86e6f450b8cc469628ba70bf2947b049
The radio receiver was created on the basis of the "Alpinist" receiver circuit with the addition of an IF cascade and recalculation of the nominal values "u200b"u200bof parts for 4.5 V. In those years, the appearance of this model, with the possibility of using it in stationary and portable modes, was an achievement for the USSR.
