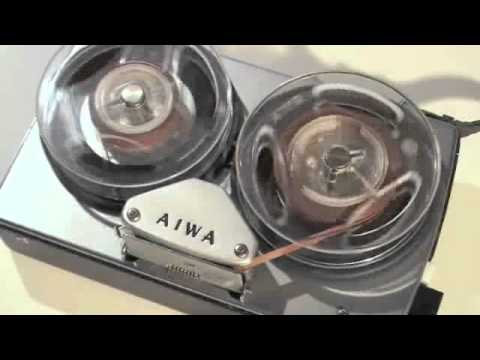

The AIWA TP-60R reel-to-reel portable tape recorder has been produced since 1964 by Aiwa.
,86e6f450b8cc469628ba70bf2947b049
Tokyo.
,86e6f450b8cc469628ba70bf2947b049
Japan.
Recording or playback speed is variable, without stabilization.
,86e6f450b8cc469628ba70bf2947b049
The 63mm spool holds the tape volume for a maximum of 30 minutes run on both sides.
,86e6f450b8cc469628ba70bf2947b049
The circuit contains 4 transistors.
,86e6f450b8cc469628ba70bf2947b049
Power supply - four AA batteries.
,86e6f450b8cc469628ba70bf2947b049
There is no erasing and biasing generator; a constant voltage is supplied to the erasing head during writing or erasing.
,86e6f450b8cc469628ba70bf2947b049
Average output power 150 mW.
,86e6f450b8cc469628ba70bf2947b049
The diameter of the loudspeaker is 5.2 cm. The operating frequency range in terms of sound pressure at the optimum speed of the tape pulling is 200 ... 5000 Hz.
,86e6f450b8cc469628ba70bf2947b049
The dimensions of the tape recorder are 140x85x53 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight 700 grams.
,86e6f450b8cc469628ba70bf2947b049
Includes reels, empty and with tape, earphone, 2 microphones, large and miniature, leather case.
