Sojuz MK-110S-1 1990
Sorry, this page is not translated yet. Automatic translation used.

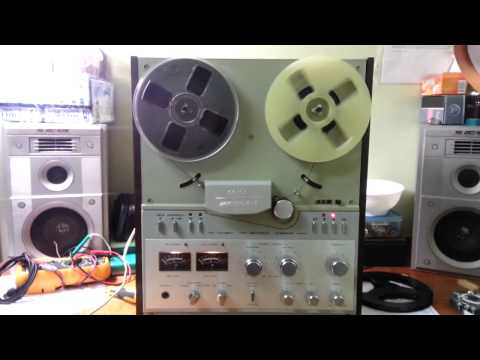

The Soyuz-110-stereo stereo reel tape recorder has been produced by the Bryansk EMZ since the beginning of 1986. The tape recorder provides recording of stereo phonograms with subsequent playback on external speakers and stereo phones. The model used: three-engine LMC with electronic control and automatic tracking of the tape tension in the rewind and stroke modes; electronic braking of the bobbin nodes. There is a possibility: perform stunt records; automatic stop at the end of the tape; control of the recording and playback level by indicators, congestion control by peak congestion indicators; LED indication of operating modes; automatic shutdown of the speaker when the amplifier malfunctions; work in the "Amplifier" mode; management of operating modes and automatic search for remote control records (it is out of the kit). Separate heads make it possible to listen to the recorded signal during recording. The presence of a tape flow meter with a reset button allows you to find records. Two coils included, one with magnetic tape. Type of tape A4416-6. Coil number 18 or 22. Belt speed 19.05; 9.53 cm / sec. The maximum recording time is 2x45 and 2x90 minutes. The operating frequency range is 30 ... 22000 and 40 ... 16000 Hz. Knock coefficient ± 0.09 and 0.15%. The harmonic ratio on the drug is 1%. The relative level of noise and interference in the Z / V channel is -63 dB. Output power: rated 2x15, maximum 2x70 watts. Power consumption 180 watts. Dimensions of the model are 510x420x234 mm. Weight is 24 kg. Since 1990, the plant has been producing the Soyuz MK-110S-1 tape recorder in design, layout, and design similar to the Soyuz-110-stereo model, but with higher frequency response.
Information from collection of Valery Khartchenko
