Ilga-301 1979
Sorry, this page is not translated yet. Automatic translation used.

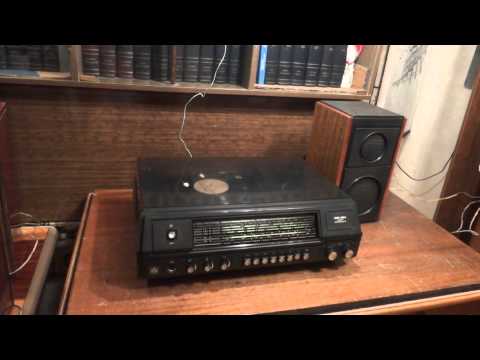

The stationary transistor radio "Ilga-301" has been produced by the Irkutsk Radio Plant since 1979. ,86e6f450b8cc469628ba70bf2947b049Radiola "Ilga-301" operates in the ranges DV, SV, KV (3 sub-bands), VHF, and plays records of all formats. ,86e6f450b8cc469628ba70bf2947b049The model is developed on the basis of the Vega-315 radio. ,86e6f450b8cc469628ba70bf2947b049It uses a three-speed EPU III-EPU-38. ,86e6f450b8cc469628ba70bf2947b049The Ilga-301 operates at the 6AS-9 AS, where the 6GD-6 and 3GD-31 heads are installed. ,86e6f450b8cc469628ba70bf2947b049The model has AFC in the VHF range, bass and treble tone control, light indication of the type of work. ,86e6f450b8cc469628ba70bf2947b049Sensitivity in AM 200 µV, FM 15 µV. ,86e6f450b8cc469628ba70bf2947b049Output power 3 W. ,86e6f450b8cc469628ba70bf2947b049The frequency range in AM is 100 ... 3550 Hz, FM 100 ... 10000 Hz. ,86e6f450b8cc469628ba70bf2947b049Power consumption 14/40 W. ,86e6f450b8cc469628ba70bf2947b049The dimensions of the model are 534x377x164 mm. ,86e6f450b8cc469628ba70bf2947b049Weight 16 kg. ,86e6f450b8cc469628ba70bf2947b049Price 115 rubles. ,86e6f450b8cc469628ba70bf2947b049Since 1981, the plant has been producing the Ilga-301-1 model, which, in addition to a different design of the AU, a different EPU, small changes in the circuit and more modern radioelements, is similar to the base one.,86e6f450b8cc469628ba70bf2947b049,null,ru,null,null,null,null
Documentation:
Video:
Information from collection of Valery Khartchenko
