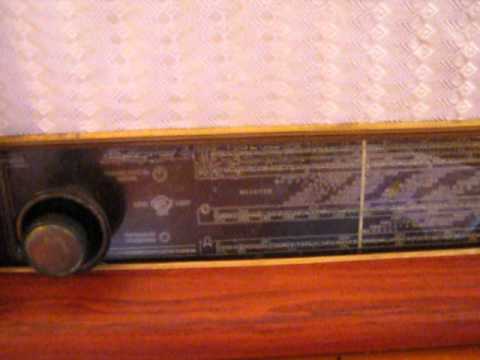

Since the fall of 1953, the VEF-Accord tube network radio receiver (M-255) was produced by the Riga State Electrotechnical Plant "VEF".
The receiver is a 7-tube desktop superheterodyne of the 2nd class, powered from the network.
Frequency ranges: LW 150 ... 410 kHz, CB 520 ... 1600 kHz, KB1 3.95 ... 9.2 MHz.
KB2 9 ... 12.1 MHz.
IF "u003d 465 kHz.
Sensitivity at LW, CB 200, HF 300 μV.
Selectivity on the adjacent channel 26 dB, on the mirror on the Far East, CB 30, KV 12 dB.
The speakers are ZGD-5-VEF and ZGD-6-VEF loudspeakers.
The rated output power is 1.5 watts.
The band of reproduced sound frequencies is 100 ... 4000 Hz.
Power consumption 65 watts.
The dimensions of the receiver are 590x410x340 mm.
Weight is 18 kg.
Compared to the VEF-Accord radio channel, manufactured since 1954, the number of times the VEF-Accord radio receivers have been released is several times less.
