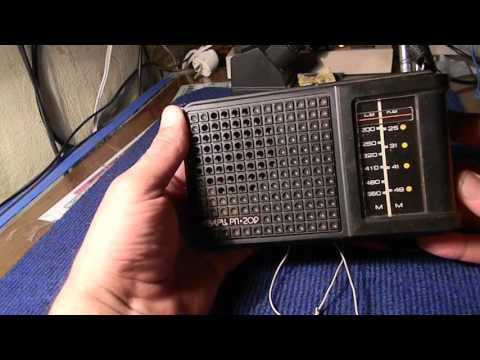

The portable transistor radio receiver "Quartz RP-209" has been producing the Kyshtym radio plant since 1988.
,86e6f450b8cc469628ba70bf2947b049
The receiver is designed to receive radio stations in the CB and survey HF 5.95 ... 12.2 MHz bands.
,86e6f450b8cc469628ba70bf2947b049
Power is supplied from 4 A-316 elements.
,86e6f450b8cc469628ba70bf2947b049
Sensitivity in the range of SV - 1.5 mV / m, KV - 0.75 mV / m.
,86e6f450b8cc469628ba70bf2947b049
Selectivity in the MW range - 20 dB.
,86e6f450b8cc469628ba70bf2947b049
Rated output power 100 mW, maximum 150 mW.
,86e6f450b8cc469628ba70bf2947b049
The range of reproducible sound frequencies is 450 ... 3150 Hz.
,86e6f450b8cc469628ba70bf2947b049
Receiver dimensions 176x112x48 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight 540 grams.
,86e6f450b8cc469628ba70bf2947b049
In some models, the scale is inverted.
