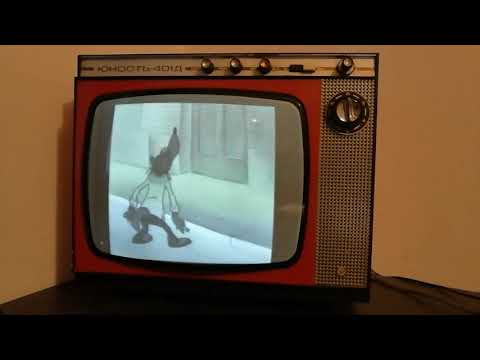

The television receiver for b / w images "Yunost-401 / D" has been produced by the Moscow Radio Engineering Plant since 1972.
,86e6f450b8cc469628ba70bf2947b049
The portable TV of the 4th class `` Yunost-401 '' (PT-31-IV-1) is designed to receive television programs in the MV, and when the SKD-20 channel selector is installed in the UHF range.
,86e6f450b8cc469628ba70bf2947b049
The Yunost-401D TV set already has a SKD-20 unit.
,86e6f450b8cc469628ba70bf2947b049
The TV provides reception of programs at a distance of up to 100 km from the TV studio.
,86e6f450b8cc469628ba70bf2947b049
It uses a 31LK4B kinescope with a beam deflection angle of 90 °.
,86e6f450b8cc469628ba70bf2947b049
In the circuit of the device there is an AGC and AFC and F. The sensitivity of the TV is 100 µV.
,86e6f450b8cc469628ba70bf2947b049
Sharpness in the center of the screen 400 lines.
,86e6f450b8cc469628ba70bf2947b049
Rated output power 0.75 W.
,86e6f450b8cc469628ba70bf2947b049
The band of reproducible sound frequencies is 200 ... 7100 Hz.
,86e6f450b8cc469628ba70bf2947b049
The speaker of the model consists of a loudspeaker 0.5GD-30, there is a socket for headphones with speaker disconnection.
,86e6f450b8cc469628ba70bf2947b049
The TV is powered by a network, battery or 12 volt source.
,86e6f450b8cc469628ba70bf2947b049
Power consumption when powered from a network of 30 W, from a constant current source of 14 W.
,86e6f450b8cc469628ba70bf2947b049
Plastic case, finished with a foil imitating precious woods with metallization.
,86e6f450b8cc469628ba70bf2947b049
Dimensions of the TV 376 x 315 x 260 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight 10 kg.
,86e6f450b8cc469628ba70bf2947b049
Price 280 rubles.
