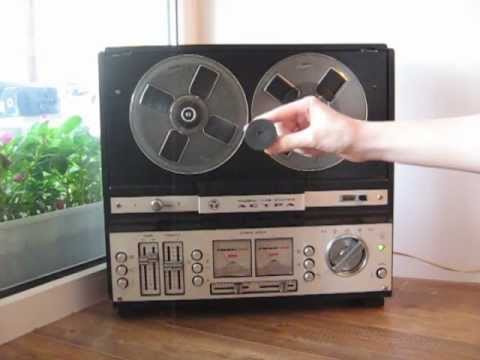

Since 1980, the Astra-209-stereo tape recorder has been produced by the Leningrad Tekhpribor Plant and the Voronezh Electropribor Plant.
It is designed to record and play back phonograms on magnetic tape.
It provides: hitchhiking at the break and the end of the tape;
indication of inclusion in the network and in recording mode;
remote start and stop of the CVL;
three-decade tape meter.
The bass amplifier of the tape recorder works on two 2GD-40 heads.
You can use remote speakers with a resistance of 4 0m.
Magnetic tape A4409-6B.
The speed of the tape is 19.05 cm / s and 9.53 cm / s.
The knock coefficient at a speed of 19.05 cm / sec ± 0.15%, 9.53 cm / sec ± 0.25%.
The maximum output power of the ultrasonic scanner is 2x10 W.
The range of operating frequencies at a speed of 19.05 cm / s is 31.5 ... 21000 Hz, 9.53 cm / s - 40 ... 14000 Hz.
The dimensions of the tape recorder are 463x388x167 mm.
Weight is 15 kg.
At the Olympic-type Astra-209-stereo tape recorder, the top and bottom are mixed up, the carrying handle is made at the bottom and there is obviously a place for two speakers at the bottom, as if the designers were not sure which tape recorder to make, horizontal or vertical?
