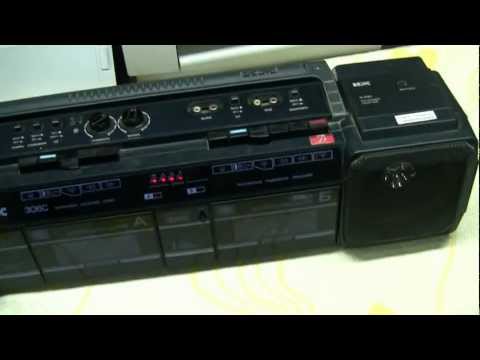

The IZH M-306S two-cassette stereo tape recorder was produced by the Izhevsk Motor Plant since 1990. The tape recorder is designed to record and play magnetic phonograms in MK cassettes. It has two LPMs, one of which works in recording or playback modes (path B), and the second only in playback mode. The device has a switchable ARUZ system, silo devices and stereo base extensions, a 3-band equalizer, a built-in microphone, an electronic signal level indicator, a 3-decade channel B tape consumption meter, a 220 V power on indicator, and a low battery indicator. It is possible to record phonograms from path A to path B and synchronously control their operation during dubbing. It is possible to automatically stop at the end of the tape, with the transfer of the CVL to Stop mode and turning off the power sources. In the LPM of tract B, the "Memory" mode is implemented. You can connect stereo phones with a resistance of 8 ohms to the tape recorder. The tape recorder is designed to work with the IEC-I tape in path A, but phonograms recorded on the IEC-II tape can be played. Technical parameters: detonation of CVL ± 0.35%; the working frequency range on the LP is 63 ... 10000 Hz; weighted signal-to-noise ratio 48 dB; timbre adjustment limits ± 4 dB; maximum output power 2x3 W; power consumption from an electric network of 20 W; the dimensions of the tape recorder are 600x160x150 mm, its weight is 5 kg.
