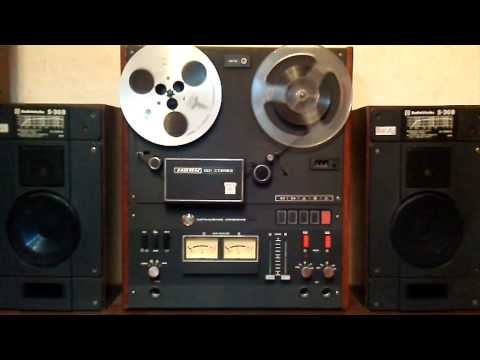

Since the beginning of 1973, the Mayak-001-Stereo network reel tape recorder set-top box has been produced by the Kiev Mayak plant.
MP provides recording and playback of mono and stereo phonograms.
Multiple dubbing from one track to another is possible, with a new recording superimposed on the existing and synchronous recording on different inputs.
There is recording control on stereo telephones and indication of levels by dial indicators when moving or stationary magnetic tape.
There is a possibility of remote control by all the LPM modes, and the presence of a meter meter tape and auto-stop increases the capabilities of the device.
In MP there are two speeds for pulling the tape: 19.05 and 9.53 cm / sec.
The frequency range on the LP at a high speed of 31.5 ... 20,000 Hz.
At the lowest speed, 31.5 ... 16000 Hz.
The detonation coefficient of the CVL is 0.1 and 0.2%, respectively.
Dimensions MP - 425x460x200 mm, weight 20 kg.
The weight of the remote control is 300 grams.
In 1980, the technical parameters of the tape recorder were improved and a quality mark was assigned to it.
Based on information from collection of Valery Khartchenko
