Since the beginning of 1955, the Avangard-55 black-and-white television receiver has been produced by the Leningrad plant named after Kozitsky and the Krasnoyarsk TV plant.
,86e6f450b8cc469628ba70bf2947b049
The third-class TV "Avangard-55" is based on the previous model "Avangard".
,86e6f450b8cc469628ba70bf2947b049
The transfer from the second to the third grade is associated with higher requirements for the quality of television images and sound.
,86e6f450b8cc469628ba70bf2947b049
Classes for televisions have not yet officially been, but during development they were provided for, although they were not indicated in the instructions.
,86e6f450b8cc469628ba70bf2947b049
The new TV set is designed to receive television studios in one of the first five channels, to receive FM stations in three sub-bands and to play back a recording from an external EPU.
,86e6f450b8cc469628ba70bf2947b049
Decorated TV in a polished wooden box measuring 545x585x400 mm.
,86e6f450b8cc469628ba70bf2947b049
TV weight 45 kg.
,86e6f450b8cc469628ba70bf2947b049
AC power supply.
,86e6f450b8cc469628ba70bf2947b049
Power consumption when receiving TV 220 W, radio 120 W.
,86e6f450b8cc469628ba70bf2947b049
Sensitivity 500 μV.
,86e6f450b8cc469628ba70bf2947b049
Output power 1 W.
,86e6f450b8cc469628ba70bf2947b049
Sound frequency range 100 ... 5000 Hz.
,86e6f450b8cc469628ba70bf2947b049

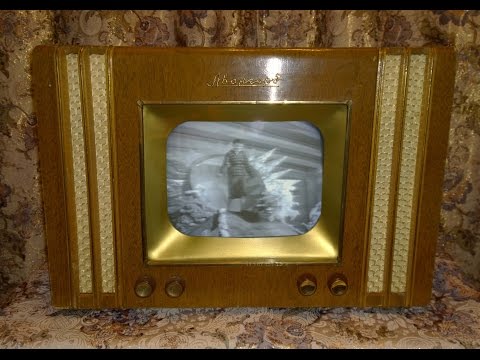

On the front panel there is a frame flanking the screen, on the sides of which two loudspeakers are fixed under the cloth drapery.
,86e6f450b8cc469628ba70bf2947b049
The main control knobs are located in front of the screen.
,86e6f450b8cc469628ba70bf2947b049
On the right side wall there are 2 knobs, program switching and local oscillator settings.
,86e6f450b8cc469628ba70bf2947b049
There are additional controls on the back of the chassis;
,86e6f450b8cc469628ba70bf2947b049
network switch, fuse, adapter and antenna socket to which the cable of the indoor and outdoor antenna is connected through the matching device.
,86e6f450b8cc469628ba70bf2947b049
In 1955 and until 1957, the plant simultaneously produced a three-channel TV "Avangard" in the design of the "Avangard-55" model.
