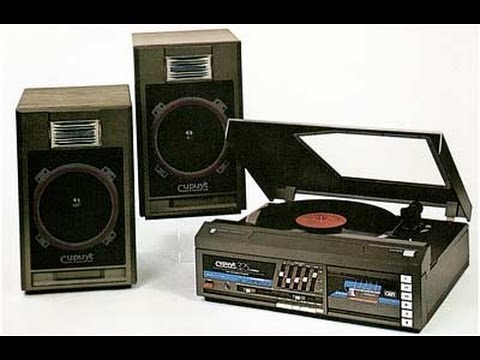

The "Sirius ME-325-stereo" magnetoelectrophone has been produced by the Izhevsk Radio Plant since 1988.
,86e6f450b8cc469628ba70bf2947b049
The combined device consists of an EPU type 3-EPU-48SP, a cassette tape recorder panel and amplifiers with a 5-band equalizer, combined in one housing and external speakers.
,86e6f450b8cc469628ba70bf2947b049
The EPU is powered by a low-speed engine with electronic stabilization of the disk rotation frequency, a GZK-622 type head is installed in the tonearm, and there is a microlift.
,86e6f450b8cc469628ba70bf2947b049
In MP, dynamic bias is applied, which provides improved recording quality at higher frequencies, there is ARUZ, full hitchhiking.
,86e6f450b8cc469628ba70bf2947b049
There is a LED indicator of the output signal level, a universal input with a mode switch, a headphone jack, an auto-disconnect device if there is no signal at the output for 3 minutes.
,86e6f450b8cc469628ba70bf2947b049
Nominal (maximum) output power 2x6 (2x9) W, audio frequency range at the linear output 40 ... 12500 Hz, frequency regulation in the equalizer 100, 330, 1000, 3300, 10000 Hz, CVL speed - 4.76 cm / s,
,86e6f450b8cc469628ba70bf2947b049
the rotational speed of the EPU disk is 33/45 rpm, the detonation coefficient of the LPM / EPU is ± 0.3 / 0.25%, the noise level in the recording / playback channel is -48 dB, the power consumption is 50 W, the dimensions of the device are 430x345x145 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight - 9 kg.
