Orbita-107-stereo 1987
Sorry, this page is not translated yet. Automatic translation used.

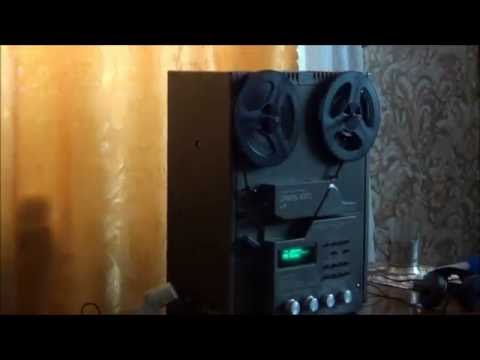

The reel-to-reel "Orbita-107-stereo" prefix has been produced since 1987 by the Leningrad plant Pyrometer. Since 1988, "Orbit MPK-107C" has been a desktop reel tape recorder-prefix of the first difficulty group, designed to record music and speech programs on a magnetic tape from a microphone, radio, broadcast network, TV, and playback of recorded recordings through two remote speakers or UCU with speakers of the appropriate class. The speed of the tape 19.05; 9.53 cm / sec. The duration of continuous recording and playback on a single track tape 34 microns thick at a speed of 19.05 cm / s 96 min. 9.53 cm / s 192 min. Rewinding time about 150 seconds. The relative noise level in the recording-playback channel at a speed of 19.05 cm / s is 58 dB. 9.53 cm / s - 52 dB. The harmonic coefficient at a speed of 19.05 cm / s is 2.5%. 9.53 cm / s - 2%. Knock factor 0.1% and 0.25%. The frequency band at a speed of 19.05 cm / s is 31.5 ... 20000 Hz. 9.53 cm / s 31.5 ... 14000 Hz. The frequency of the bias current is 85 kHz. Rated output power 5, maximum 15 watts. Power consumption of 150 watts from the mains. MP weight 24 kg.
Documentation:
Video:
Information from collection of Valery Khartchenko
