Suvenir 1965
Sorry, this page is not translated yet. Automatic translation used.
The portable radio receiver of the 2nd class "Souvenir" has been produced by the Voronezh Radio Plant since 1965. ,86e6f450b8cc469628ba70bf2947b049 Superheterodyne with 10 transistors and 2 diodes. ,86e6f450b8cc469628ba70bf2947b049 The receiver is designed to operate in LW, SV and 2 semi-stretched HF sub-bands. ,86e6f450b8cc469628ba70bf2947b049 In the LW and MW ranges, reception is carried out on a magnetic antenna, HF on a telescopic one. ,86e6f450b8cc469628ba70bf2947b049 Sensitivity in DV - 2.0 mV / m, SV - 1.0 mV / m, KB - 100 μV. ,86e6f450b8cc469628ba70bf2947b049 Adjacent channel selectivity at -10 kHz detuning - 40 dB. ,86e6f450b8cc469628ba70bf2947b049 The band of reproducible sound frequencies is 200 ... 4000 Hz. ,86e6f450b8cc469628ba70bf2947b049 The rated output power is 150 mW. ,86e6f450b8cc469628ba70bf2947b049 Quiescent current 6 mA, at rated power 50 mA. ,86e6f450b8cc469628ba70bf2947b049 Powered by two KBS-L-0.5 batteries. ,86e6f450b8cc469628ba70bf2947b049 The receiver remains operational when the voltage drops to 4 V. The case is made of colored shock-resistant plastic with a carrying handle. ,86e6f450b8cc469628ba70bf2947b049 Antenna, ground and headphones can be connected to the receiver. ,86e6f450b8cc469628ba70bf2947b049 Dimensions of RP 260x160x67 mm. ,86e6f450b8cc469628ba70bf2947b049 Weight with batteries 1.6 kg. ,86e6f450b8cc469628ba70bf2947b049 RP had several design options. ,86e6f450b8cc469628ba70bf2947b049 ,null,ru,null,null,null,null
Documentation:

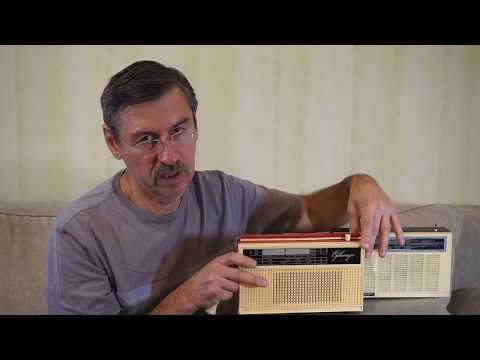

Video:
Information from collection of Valery Khartchenko
