Belarus'-59 1959
Sorry, this page is not translated yet. Automatic translation used.

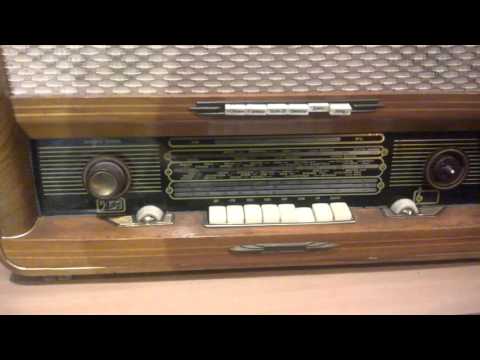

Since the beginning of 1959, the radio-station Belarus-59 was produced by the Minsk Radio Plant. Radiola has a 10-tube receiver and a universal electronic control unit. Frequency range: LW 150 ... 415 kHz, CB 520 ... 1600 kHz, KV-1 8.82 ... 12.1 MHz, KV-2 5.56 ... 7.5 MHz, KV-3 3.95 ... 5.56 MHz, VHF 64.5 ... 73 MHz. The VHF frequency inverter is 8.4 MHz, for the remaining ranges 465 kHz. The sensitivity at VHF-FM is 10 μV, for the remaining ranges of 50 μV. Adjacent channel selectivity in the VHF-FM 40 dB range, in the remaining 60 dB ranges. The band of reproduced sound frequencies in the VHF-FM range and during EPU operation is 80 ... 12000 Hz, in the AM ranges 80 ... 4000 Hz. Rated output rated power 4 watts. Power consumption 80 watts. A radio radiofrequency speaker consists of two broadband and two tweeters. The dimensions of the radio are 645x440x340 mm. Weight is 25 kg.
Documentation:
Video:
Information from collection of Valery Khartchenko
