Olimp-003-stereo 1984
Sorry, this page is not translated yet. Automatic translation used.
The reel-to-reel tape recorder "Olimp-003-stereo" has been producing the Lepse Kirov Electric Machine Building Production Association since 1984. ,86e6f450b8cc469628ba70bf2947b049 `` Olimp-003-stereo '' is a desktop reel-to-reel tape recorder of the highest group of complexity, designed for recording phonograms on magnetic tape from a microphone, radio receiver, broadcasting network, TV, as well as playback of a record through a high-class UCU, ULF receiver, TV ,86e6f450b8cc469628ba70bf2947b049 or other sound reproducing equipment. ,86e6f450b8cc469628ba70bf2947b049 Main technical data: The width of the magnetic tape is 6.25 mm. ,86e6f450b8cc469628ba70bf2947b049 The belt speed is 19.05 and 9.53 cm / sec. ,86e6f450b8cc469628ba70bf2947b049 The duration of recording and playback on one track of a tape 34 microns thick, at a speed of 19.05 cm / s 96 min, 9.53 cm / s 192 min. ,86e6f450b8cc469628ba70bf2947b049 Duration of rewinding, no more than 130 sec. ,86e6f450b8cc469628ba70bf2947b049 Input sensitivity: Microphone 0.0003 V. Receiver 0.008 V. Pickup 0.2 ... 0.6 V. Line 10 ... 30 V. Relative noise level in the s / v channel at speed, no more: 19.05 ,86e6f450b8cc469628ba70bf2947b049 cm / s 60 dB. ,86e6f450b8cc469628ba70bf2947b049 9.53 cm / s 58 dB. ,86e6f450b8cc469628ba70bf2947b049 The relative erasure level is 65 dB. ,86e6f450b8cc469628ba70bf2947b049 Harmonic distortion - 1.5%. ,86e6f450b8cc469628ba70bf2947b049 Detonation coefficient at speed: 19.05 cm / s - 0.1%. ,86e6f450b8cc469628ba70bf2947b049 9.53 cm / s - 0.2%. ,86e6f450b8cc469628ba70bf2947b049 When the tape moves to the left at a speed of 19.05 cm / s - 0.17%. ,86e6f450b8cc469628ba70bf2947b049 The band of reproducible sound frequencies of the MP at a speed of 19.05 cm / s - 31.5 ... 22000 Hz. ,86e6f450b8cc469628ba70bf2947b049 9.53 cm / s - 31.5 ... 16000 Hz. ,86e6f450b8cc469628ba70bf2947b049 When the tape moves to the left at a speed of 19.05 cm / s 31.5 ... 20,000 Hz. ,86e6f450b8cc469628ba70bf2947b049 The frequency of the bias current is not less than 107 kHz. ,86e6f450b8cc469628ba70bf2947b049 Rated power of the telephone output, no more than 3.5 mW. ,86e6f450b8cc469628ba70bf2947b049 The power source is a 50 Hz network, with a voltage of 220 volts. ,86e6f450b8cc469628ba70bf2947b049 Power consumption from the network is 130 watts. ,86e6f450b8cc469628ba70bf2947b049 The overall dimensions of the set-top box are 495x458x220 mm. ,86e6f450b8cc469628ba70bf2947b049 Weight 27 kg. ,86e6f450b8cc469628ba70bf2947b049 ,null,ru,null,null,null,null
Documentation:

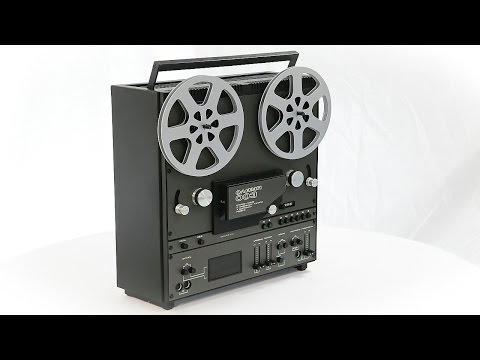

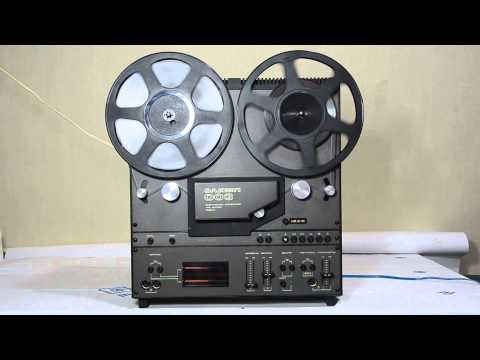

Video:
Information from collection of Valery Khartchenko
