Elektron-M 1977
Sorry, this page is not translated yet. Automatic translation used.

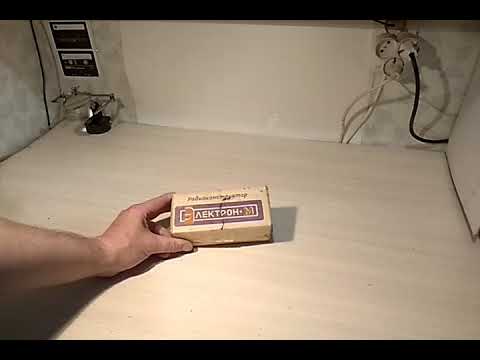

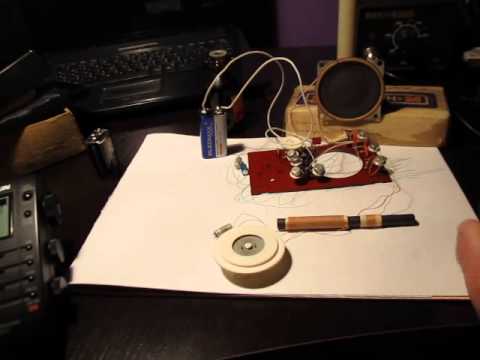

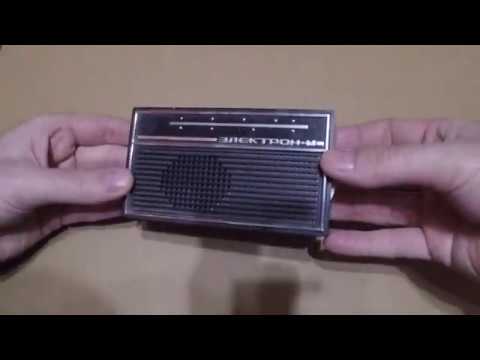

The radio designer "Electron-M" has been producing the Zaporozhye semiconductor device plant since the 1st quarter of 1977. ,86e6f450b8cc469628ba70bf2947b049 The radio constructor is a set of parts of elements and assemblies for assembling a transistor radio receiver of direct amplification according to the 2-V-3 scheme, operating in the medium wave range. ,86e6f450b8cc469628ba70bf2947b049 The receiver has a sensitivity of about 30 mV / m. ,86e6f450b8cc469628ba70bf2947b049 Maximum output power 100 mW. ,86e6f450b8cc469628ba70bf2947b049 The range of reproducible sound frequencies is 200 ... 5000 Hz. ,86e6f450b8cc469628ba70bf2947b049 Power is supplied from the Krona battery. ,86e6f450b8cc469628ba70bf2947b049 The price of a radio designer is 6 rubles. ,86e6f450b8cc469628ba70bf2947b049 The set was produced by the plant until the first half of the 90s. ,86e6f450b8cc469628ba70bf2947b049 With an almost unchanged electrical circuit, with a slight correction of the denominations of parts and designations in the circuit, the printed circuit board had several wiring options. ,86e6f450b8cc469628ba70bf2947b049 The RC was produced in different design options (three of them were seen), the designs of the assembly and operating instructions (two were noticed) and in different packages (three were noticed), with different loudspeakers. ,86e6f450b8cc469628ba70bf2947b049 ,null,ru,null,null,null,null
Documentation:
Video:
Information from collection of Valery Khartchenko
