Akkord-001-stereo 1973
Sorry, this page is not translated yet. Automatic translation used.

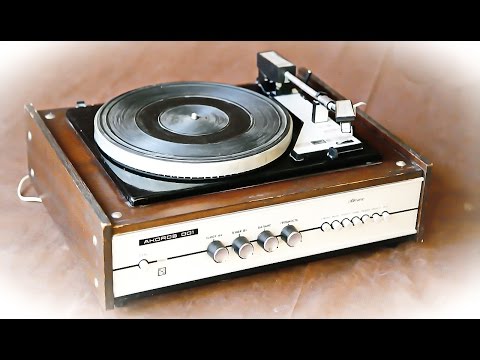

The transistor "Accord-101-stereo" and "Accord-001-stereo" network transistors from 1972 and 1973 were produced by the Riga Electromechanical Plant. Electrophones "Accord-101-stereo" and "Accord-001-stereo" are the same. At first, the electrophone was positioned as first class, then it was transferred to the highest one, since in many of its parameters, besides EPU, it corresponded to it. Stereo stereo "Accord-001 stereo" is one of the first top-class electrophones in the USSR. It is designed to listen to mono and stereo records of all formats and consists of a player in which a low-frequency amplifier and an EDA and two loudspeakers are placed. There is a correction amplifier for the magnetoelectric pickup, and a preamplifier is used for operation from other sources. The model uses a stereo EPU of type I-EPU-73S - with a semi-automatic sound pickup and a GZUM-73S magnetoelectric head. The speaker consists of two speakers "10MAC-1", in which two loudspeakers are installed: one 10GD-30 and one ZGD-15M. The microphone has jacks for connecting a broadcast network, a tape recorder, a receiver or stereo phones. The transition from one type of work to another is carried out using the push button switch of the type of work installed on the front panel. The band of the working sound frequencies of the microphone 60 ... 15000 Hz. Maximum output power 2x10 watts. Dimensions of the model 210x465x380 mm. Dimensions of one speaker - 430x270x255 mm. The weight of the electric player without packaging - 16.5 kg. The weight of each speaker is 8.2 kg.
Documentation:
Video:
Information from collection of Valery Khartchenko
