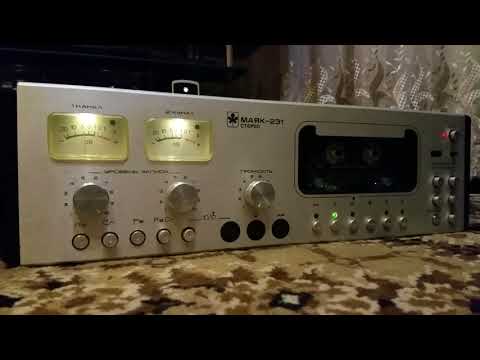

The Mayak-231-stereo stereo cassette recorder-set-top box has been produced by the Mayak Kiev Radio Plant since 1983.
MP with electronic-logical control is designed to record phonograms on magnetic tape and play them using CCS with speakers.
There is: auditory and visual control of the recorded signal;
network indication;

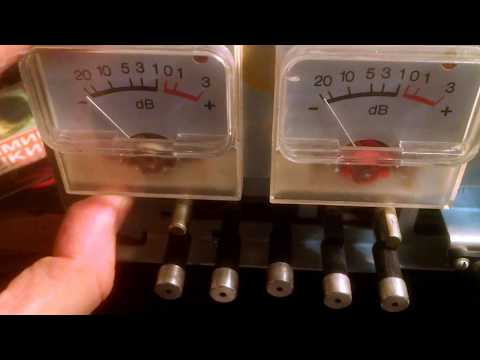

peak indicator of overload when recording;
indication of operating modes;
noise reduction device;
tape flow meter with memory system;
Possibility of software control of hitchhiking and memory;
Remote control in the modes "Working stroke", "Rewind", "Pause" and "Stop".
Magnetic tape A4205-ZB, A4212-ZB.
The frequency range on the LP on the A4205-ZB tape is 40 ... 14000 Hz;
A4212-ЗБ - 40 ... 16000 Hz.
Knock coefficient ± 0.2%.
The harmonic ratio on the drug is 3%.
The relative level of noise and interference in the channel Z / V -54 dB.
Power consumption from the network 40 watts.
Dimensions MP 460x360x130 mm.
Weight 9.5 kg.
MP on the first prospectus in external design differed from commercially available.
